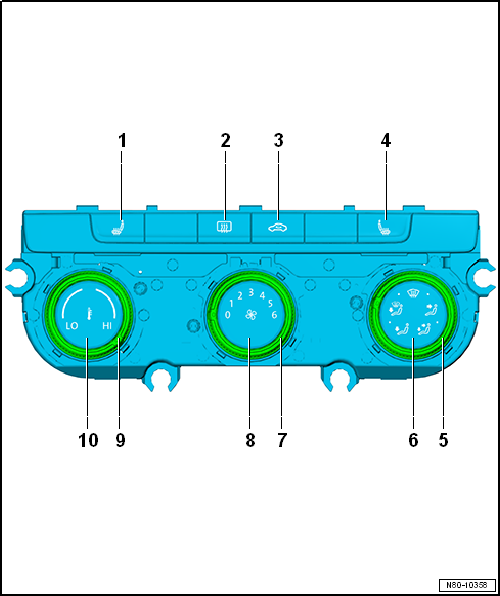

Overview of control and display unit
| 1 - |
Heated driver seat regulator |
| Seat heater has 3 heat settings. Current setting is shown by LED. |
| If no LED is lit, seat heating is switched off. |
| 2 - |
Heated rear window button |
| Depending on ambient temperature, rear window heating will remain on
from 4 to 20 minutes. |
| 3 - |
Air recirculation button |
Note
| Air recirculation mode changes to fresh air mode when ignition is
switched off. |
| In vehicles for Japanese market, “air recirculation mode” remains
unchanged when ignition is switched off. |
| 4 - |
Heated front passenger seat regulator |
| Seat heater has 3 heat settings. Current setting is shown by LED. |
| If no LED is lit, seat heating is switched off. |
| 5 - |
Rotary knob for setting air distribution |
| 6 - |
Display for air distribution |
| 7 - |
Rotary knob for setting blower speed |
| Left: reduce blower speed. |
| Right: increase blower speed. |
| 8 - |
Display for blower speed |
| 9 - |
Rotary knob for setting temperature |
| Left: reduce temperature. |
| Right: increase temperature. |
| 10 - |
Temperature setting display |
| Removing and installing operating and
display unit |
| Removal and installation are identical with procedure for
vehicles with air conditioning system
→ Chapter. |
|
Other controlling and regulating components
| Removing and installing ambient
temperature sensor -G17- |
| Removal and installation are identical with procedure for
vehicles with air conditioning system
→ Chapter. |
|
|
|
