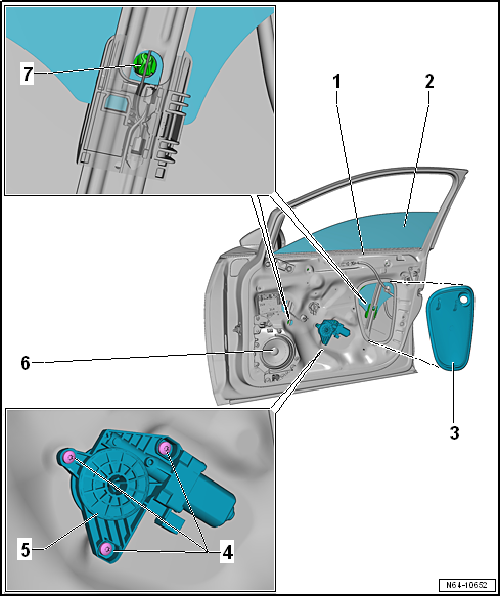

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - front door window

This assembly overview covers the Volkswagen Golf Mk7 front door window (left side shown; right is similar): the glass, inner door cover, mounting bolts (3 Nm, qty 3) and the window regulator motor connection.

  Note

Only the left side is shown. The right side is similar.

1 -	Front door

2 -	Door window

• Removing and installing → Chapter.

3 -	Inner door cover

• Removing and installing → Chapter

4 -

Bolt

• Qty. 3
• 3 Nm

5 -	Window regulator motor

• Removing and installing → Chapter

6 -

Cover

7 -	Locking lug

• Qty. 2
• For securing the door window on window regulator

Questions & answers

Assembly overview - front door window — Volkswagen Golf Mk7

What does the Golf Mk7 front door window assembly show?

The door, door window glass, inner door cover, mounting bolts (3 Nm), and the connection between the glass and the window regulator carrier.
