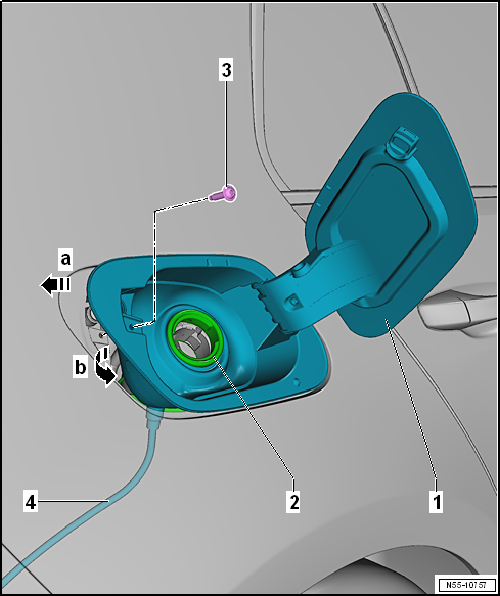

Slightly pull tank flap unit towards rear
-arrow a- out of catches. |
| – |
Swing tank flap unit -1- out of the
side panel -arrow b-. |
| – |
Guide water drainage hose -4- together
with tank flap unit out of side panel. |
| – |

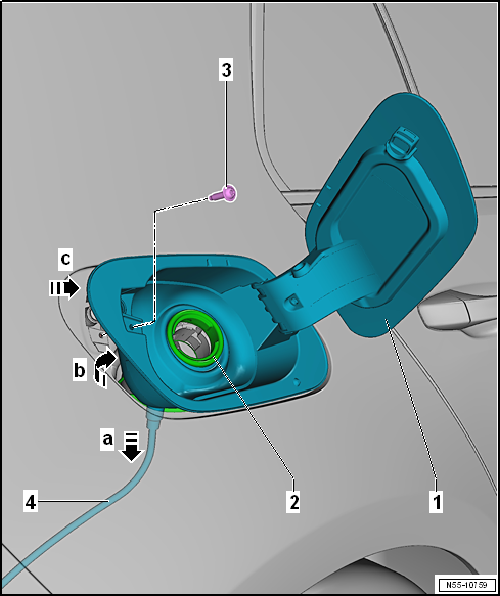

Insert water drainage hose -4- through
opening in tank flap unit -1- and then pull
it through as far as it will go. |
| – |
Slide water drainage hose -4- into side
panel -arrow a-. |
| – |
Swing tank flap unit -1- into side
panel -arrow b- and pull sleeve over filler
neck -2-. |
| – |
Then, push tank flap unit completely into side panel
-arrow c-. |
| l |
Check function of release components. |
Questions & answers
Removing and installing tank flap unit — Volkswagen Golf Mk7
How do I remove the Golf Mk7 tank flap unit?
Unscrew the tank cover, remove the bolt, pull the unit rearward out of its catches, swing it out of the side panel, and disconnect the water drain hose.
Does the Golf Mk7 tank flap unit need coding after replacement?
If the actuator is replaced, the new unit may need to be coded to the central locking system via dealer diagnostics.
1 -
Fuel tank flap
–
Removing and installing
→ Chapter.
2 -
Tank flap unit
Removing and installin ...
Removing
–
Remove wheel housing liner
→ Chapter.
–
Disconnect connector ...
