Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing manufacturer emblem

Note: the Volkswagen Golf Mk7 manufacturer emblem cannot be removed without damage — this page gives the careful levering technique to remove it from the radiator grille regardless, and how to press a new one back in until it engages.

  Note

The emblem cannot be removed without damage.

Removing and installing manufacturer emblem

Removing

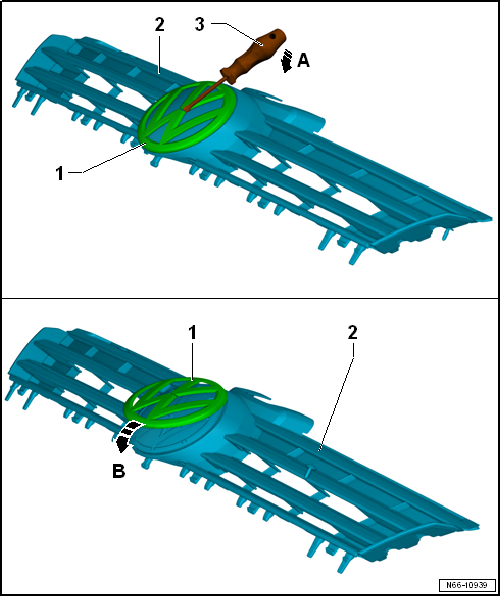

–  Use a screwdriver -3- to carefully lever manufacturer emblem -1- out of radiator grille -2- in -direction of arrow A-.
Installing
–  Press manufacturer emblem -1- on radiator grille -2- until it engages audibly.

    Questions & answers

    Removing and installing manufacturer emblem — Volkswagen Golf Mk7

    How do I remove the Golf Mk7 VW badge from the radiator grille?
    Carefully lever the emblem out with a screwdriver. The badge cannot be removed without damage — a new one is needed for refitting.
