| 1 - |
Air recirculation flap control motor -V113- or fresh air/recirculated
air, air flow flap control motor -V425- |
| Removing and installing air recirculation flap control motor -V113-
→ Chapter |
| Removing and installing fresh air/recirculated air, air flow flap
control motor -V425-
→ Chapter. |
| Overview of fitting locations
→ Chapter |
| 2 - |
Dust and pollen filter |
| Removing and installing
→ Chapter. |
| 3 - |
Left temperature flap control motor -V158- or temperature flap
control motor -V68- |
| Removing and installing
→ Chapter. |
| Overview of fitting locations
→ Chapter |
| 4 - |
Front air distribution flap control motor -V426- with air
distribution flap control motor -V428- |
| Removing and installing
→ Chapter. |
| Overview of fitting locations
→ Chapter |
| Removing and installing
→ Chapter. |
| 6 - |
Sunlight penetration photosensor -G107- |
| Only on vehicles with Climatronic. |
| Removing and installing
→ Chapter. |
| 7 - |
Evaporator temperature sensor -G308- |
| Only on vehicles with air conditioning system |
| Checking: Use vehicle diagnostic tester in “Guided fault finding”
mode and → Current flow
diagrams, Electrical fault finding and Fitting locations |
| Removing and installing
→ Chapter. |
| 8 - |
Right temperature flap control motor -V159- |
| Only on vehicles with Climatronic. |
| Removing and installing
→ Chapter. |
| Overview of fitting locations
→ Chapter |
| 9 - |
Defroster flap control motor -V107- |
| Only on vehicles with Climatronic. |
| Removing and installing
→ Chapter. |
| Overview of fitting locations
→ Chapter |
| 10 - |
Footwell vent temperature sender -G192- |
| Only on vehicles with Climatronic. |
| Checking: Use vehicle diagnostic tester in “Guided fault finding”
mode and → Current flow
diagrams, Electrical fault finding and Fitting locations |
| Removing and installing
→ Chapter. |
| 11 - |
Footwell vent on driver side |
| Removing and installing
→ Chapter. |
| Assembly overview
→ Chapter |
| 12 - |
Right vent temperature sender -G151- |
| Only vehicles with Climatronic |
| Checking: Use vehicle diagnostic tester in “Guided fault finding”
mode and → Current flow
diagrams, Electrical fault finding and Fitting locations |
| Removing and installing
→ Chapter. |
| An incorrectly installed vent temperature sender will cause flow
noise |
| 13 - |
Operating and display unit |
| Removing and installing
→ Chapter. |
| Only on vehicles with air conditioning system |
| Removing and installing
→ Chapter. |
| 15 - |
Auxiliary air heater element -Z35- with auxiliary air heater control
unit -J604- |
| Removing and installing
→ Chapter. |
| 16 - |
Condensation drain hose |
| Only on vehicles with air conditioning system |
| Removing and installing
→ Chapter. |
| 17 - |
Footwell vent on front passenger side |
| Removing and installing
→ Chapter. |
| Assembly overview
→ Chapter |
| 18 - |
Fresh air blower -V2- |
| Removing and installing
→ Chapter. |
| 19 - |
Left vent temperature sender -G150- |
| Only vehicles with Climatronic |
| Checking: Use vehicle diagnostic tester in “Guided fault finding”
mode and → Current flow
diagrams, Electrical fault finding and Fitting locations |
| An incorrectly installed vent temperature sender will cause flow
noise |
| Removing and installing
→ Chapter. |
Questions & answers

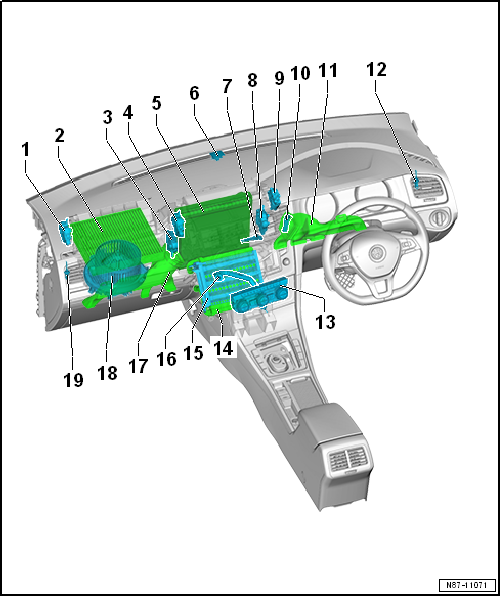

Overview of fitting locations - components inside of front passenger compartment, RHD vehicles — Volkswagen Golf Mk7
What Climatronic-specific components are inside the Golf Mk7 cabin (RHD)?
Recirculation motor -V113- or fresh air/recirculated air flap motor -V426-, evaporator sender -G263- and related sensors, mirrored from LHD.
1 -
Left vent temperature sender -G150-
Only vehicles with Climatronic.
Checking: Use vehicle diagnostic tester in “Guided fault finding� ...
