Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - door handle and door lock

This assembly overview covers the Volkswagen Golf Mk7 rear door lock and handle (left side shown; right is similar): the door lock, its 1.5 Nm locking-bar bolt, mounting bracket, base and cap.

  Note
Only the left side is shown. The right side is similar.

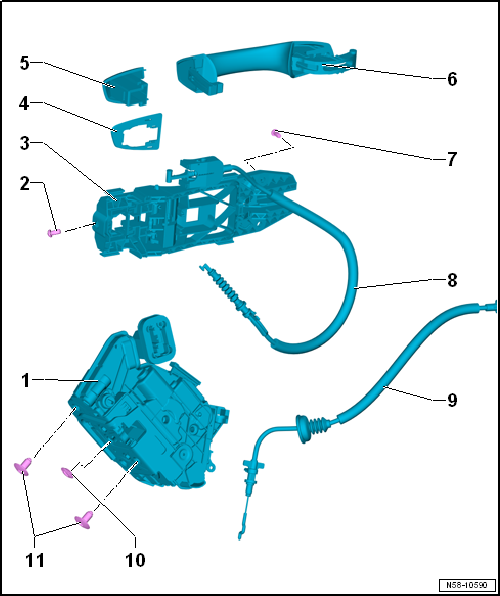

Assembly overview - door handle and door lock

1 -  Door lock
  • Removing and installing → Chapter
2 -  Bolt
  • 1.5 Nm
  • For locking bar in door handle bracket
3 -  Mounting bracket
  • Removing and installing → Chapter
4 -  Base
5 -  Cap
  • Removing and installing → Chapter.
6 -  Door handle
  • Removing and installing → Chapter.
7 -  Bolt
  • 1.5 Nm
  • Bearing plate is loosened from door when this bolt is loosened
8 -  Cable
  • From door lock -1- to mounting bracket -3
9 -  Cable
  • From inner door handle to door lock -1-
  • With grommet to passage on cover
10 -  Cap
11 -  Bolt
  • Qty. 2
  • 18 Nm
