Volkswagen Golf Mk7 Service & Repair Manual: Dimensions – “e-Golf” lettering on rear lid
This page gives the exact placement dimensions for e-Golf model lettering on the rear lid — the same 75.5 ± 1 mm and 26.5 ± 1 mm reference measurements used on the GTI/GTD variant.
Note
| When fitting the lettering, observe the fitting notes → Anchor. |

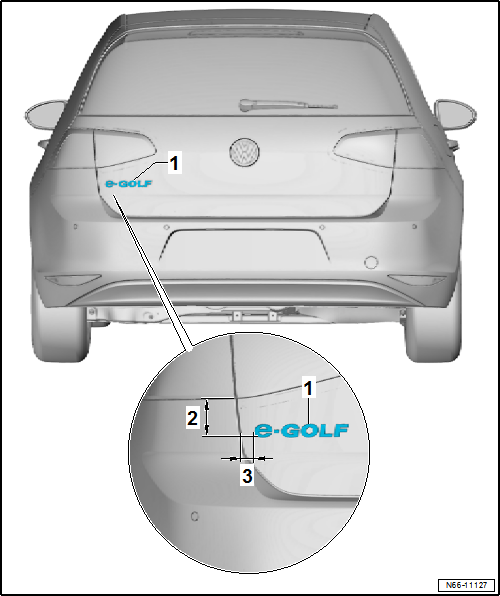

| 1 - | Lettering |
- Model designation
| 2 - | Height dimension |
- 75.5 ± 1 mm, from lower edge of lettering to tail light
| 3 - | Horizontal dimension |
- 26.5 ± 1 mm, from outer edge of rear lid to lettering
