Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - side trim panel

This assembly overview covers the Volkswagen Golf Mk7 side trim panel, left side shown (right is a mirror image), with its clips — renew any that are damaged or deformed during removal.

  Note
The illustration shows the side trim panel on the left side. The right-hand side is similar (mirror image of left-hand side).

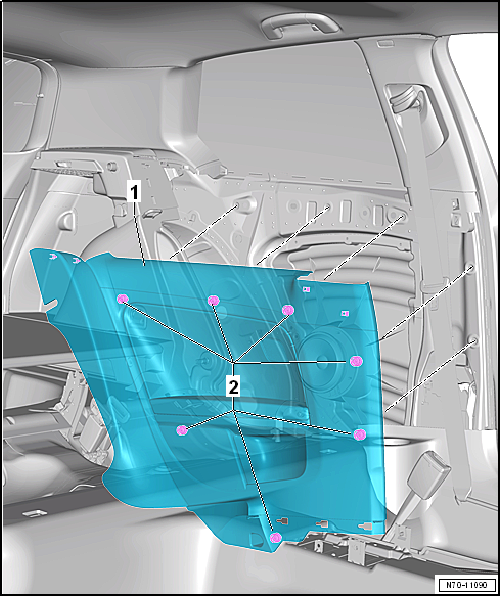

Assembly overview - side trim panel

1 -  Side trim panel
  • Removing and installing → Chapter
2 -  Clip
  • Insert into trim
  • Renew any damaged or deformed clips
