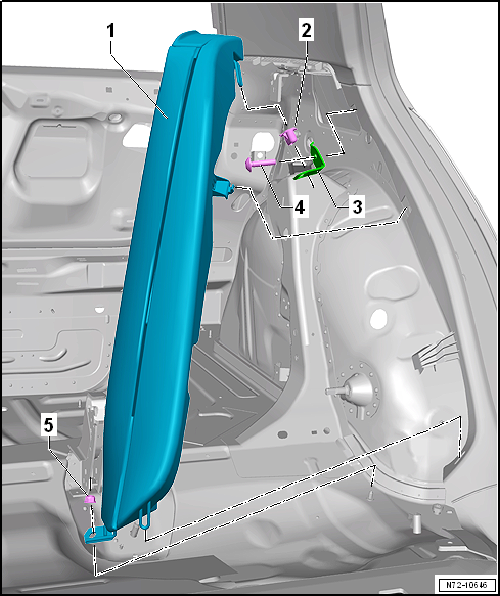

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - side padding
This assembly overview covers the Volkswagen Golf Mk7 rear seat side padding: a mounting grommet clipped into the padding bracket (renew if damaged), and bolts/nuts torqued to 8 Nm.
| 1 - | Side padding |
- Allocation → Electronic Parts Catalogue
- Removing and installing → Chapter
| 2 - | Mounting grommet |
- Clipped into side padding bracket.
- Renew if damaged
| 3 - | Side padding bracket |
| 4 - | Bolt |
- 8 Nm
| 5 - | Nut |
- 8 Nm
