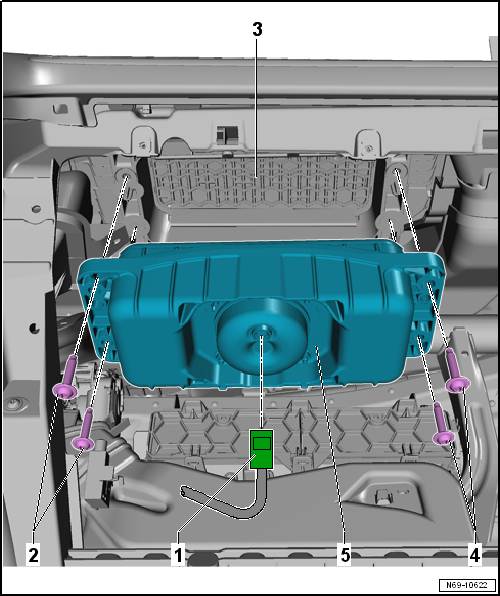

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - front passenger side airbag
This assembly overview covers the Volkswagen Golf Mk7 front passenger airbag: igniter -N131- connections, mounting bolts requiring locking fluid D 197 300 A2 at 8 Nm, and the direct note that the dash panel must be renewed after airbag deployment.
| 1 - | Electrical connections |
- For front passenger side airbag igniter 1 -N131
| 2 - | Bolts |
- Qty. 2
- Clean prior to reinstalling
- Use with locking fluid D 197 300 A2.
- 8 Nm
| 3 - | Dash panel |
- Renew dash panel after airbag has deployed → Chapter
| 4 - | Bolts |
- Qty. 2
- Clean prior to reinstalling
- Use with locking fluid D 197 300 A2
- 8 Nm
| 5 - | Front passenger side airbag |
- With front passenger side airbag igniter 1 -N131-
 WARNING
|
| Can be locked and activated via key-operated switch |
| Removing and installing → Chapter |
Questions & answers
Assembly overview - front passenger side airbag — Volkswagen Golf Mk7
What does the Golf Mk7 passenger airbag assembly show?
Electrical connections for igniter -N131-, mounting bolts (clean and use locking fluid D 197), and the airbag module in the dash panel.
Removing and installing front passenger airbag unit with front passenger
side airbag igniter 1 -N131-
Removing
WARNING
Observe safety instructions for pyrotechnic
...
