Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing door arrester

Using torque wrench -V.A.G 1331-, this page covers removing the Volkswagen Golf Mk7 rear door arrester (left side described; right is similar) — starting with removing the rear door trim.

Special tools and workshop equipment required

  Note
Removal and installation are only described for the left door retaining strap. The right side is similar.
Removing


Torque wrench -V.A.G 1331-
Torque wrench -V.A.G 1331-

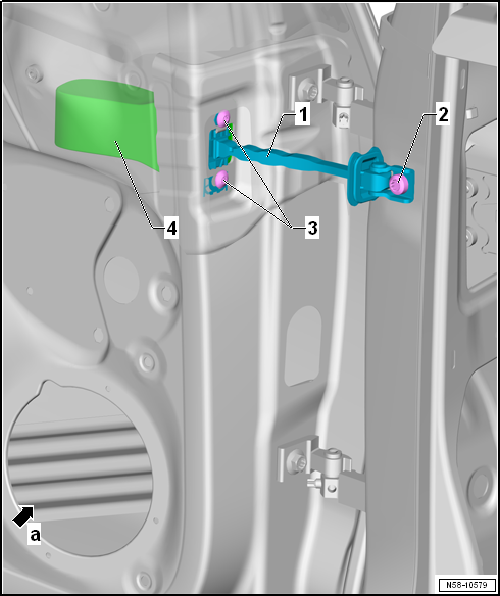

Removing and installing door arrester

–  Remove rear door trim → General body repairs, interior; Rep. gr.70.
–  Pull off self-adhesive cover.
  For models without loudspeaker pull off self-adhesive cover and remove door retaining strap through opening for loudspeaker -arrow c-.
  For models with loudspeaker detach inner door cover → Chapter and remove through this opening.
–  Unscrew bolt -2- on B-pillar.
–  Remove screws -3- and remove door retaining strap -1-.


Installing


Removing and installing door arrester

Install in reverse order of removal.
Specified torques
  → Chapter „Assembly overview - door“

    Questions & answers

    Removing and installing door arrester — Volkswagen Golf Mk7

    How do I remove the Golf Mk7 rear door arrester?
    Remove the rear door trim and inner film, unbolt the check strap from the door and B-pillar, and withdraw. Installation is the reverse.
