| Observe safety precautions
→ Chapter „Safety precautions when handling refrigerants“. |
| – |
Comply with notes
→ Chapter „Working on refrigerant circuit“. |
| – |
Observe safety precautions when working in the vicinity of
high-voltage components
→ Chapter „Safety precautions when working in the vicinity of
high-voltage components“. |
|
|
|
| – |
Observe the risk category of the high-voltage system
→ Rep. gr.00. |
 Note

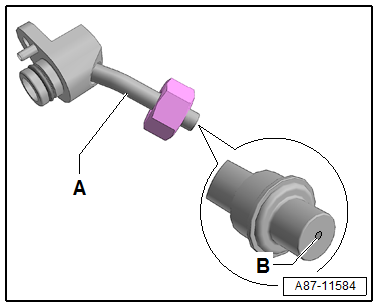

| The illustration shows a refrigerant line
-A- with a permanently installed
restrictor -B- (without strainer). |
| To remove the refrigerant line, remove refrigerant shut-off
valve for high-voltage battery heat exchanger - N542-
→ Chapter, and remove refrigerant line from heat
exchanger for high-voltage battery
→ Chapter „Removing and installing heat exchanger for
high-voltage battery“. |
| The diameter of the shown restrictor hole
-B- is approx. 0.7 mm. Depending on
the refrigerant line version, this restrictor is permanently
installed or it can be removed. For the removable version a
strainer may be fitted to prevent the restrictor hole from being
blocked by suspended particles. |
| Check restrictor hole -B- for
soiling, and clean it or renew refrigerant line as necessary. |
| Different versions. Refer to
→ Electronic Parts Catalogue. |
|
|
|
