Using assembly tool -T10479 A- and extractor hook -T20143/1-, this page covers renewing the exhaust camshaft oil seal at the gearbox end — remove the coolant pump toothed belt pulley first.

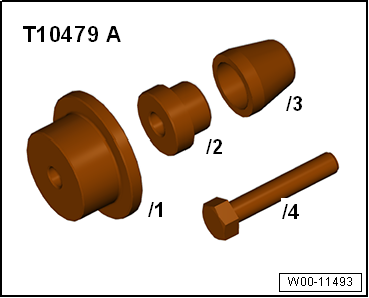

| Special tools and workshop equipment
required |
|
|
|
| – |
Remove toothed belt pulley for coolant pump
→ Chapter. |
|
|
|
| – |

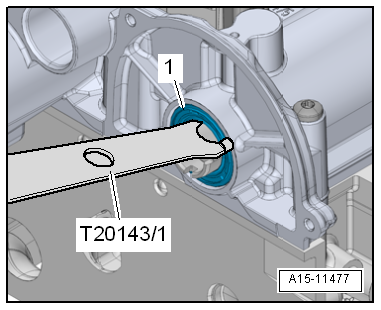

Carefully fit extractor hook -T20143/1- between camshaft and
seal -1-. |
|
|
|
| – |

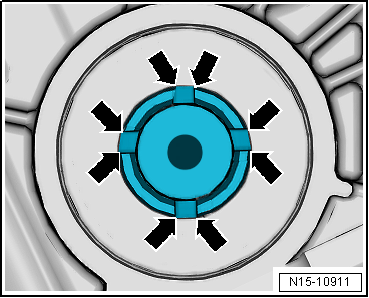

Remove any burrs in the outer area of the grooves in the
exhaust camshaft -arrows- using
fine sandpaper (220–1000 P). |
 Note
| Do not lubricate new seal. |
|
|
|
| – |

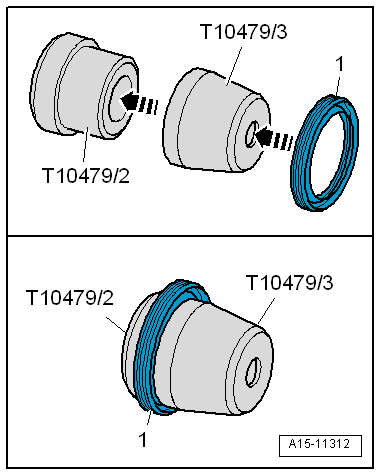

Fit seal -1- over fitting
sleeve -T10479/3- onto guide sleeve -T10479/2-. |
| Installation position: closed end of seal faces fitting
sleeve. |
| – |
Separate fitting sleeve and guide sleeve. |
|
|
|
| – |

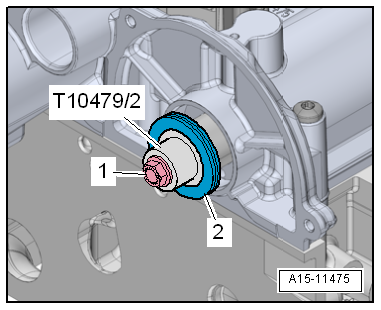

Fit guide sleeve -T10479/2- with oil seal
-2- centrally to camshaft. |
| – |
Secure guide sleeve onto camshaft using bolt
-1- for coolant pump drive
sprocket. |
| – |
Push seal onto camshaft and unbolt guide sleeve. |
|
|
|
| – |

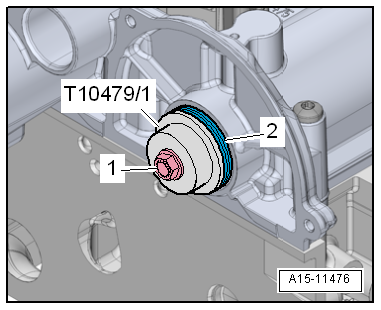

Draw in seal -2- as far as stop
using thrust piece -T10479/1- and bolt -1-
for toothed belt pulley for coolant pump. |
| – |
Install toothed belt pulley for coolant pump
→ Chapter. |
|
|
|
