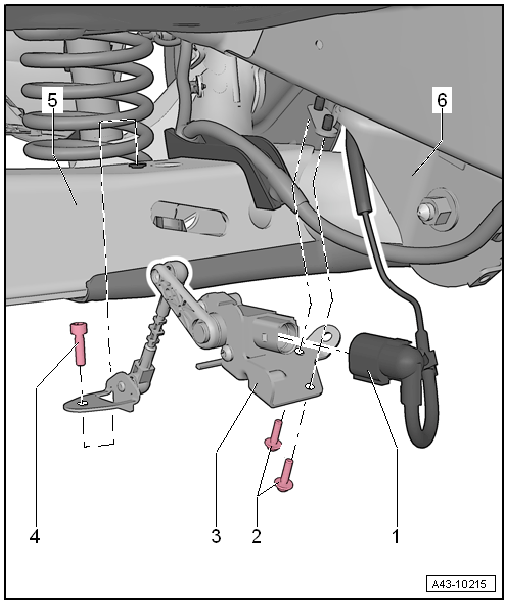

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - rear vehicle level sender, torsion beam axle
Note: the rear left sender -G76- on the torsion beam axle is only available complete with coupling rod and retaining plates — this overview covers its 5 Nm bolt mounting.
Note| The rear left vehicle level sender -G76- is only available as a replacement part complete with coupling rod and upper and lower retaining plates. |
| 1 - | Electrical connector |
| 2 - | Bolt |
| 5 Nm |
| 3 - | Rear left vehicle level sender -G76- |
| Removing and installing → Chapter |
| – | Perform basic setting of wheel damper electronics → Vehicle diagnostic tester. |
| Carry out basic setting of headlights → Electrical system; Rep. gr.94 |
| 4 - | Bolt |
| 8 Nm |
| 5 - | Axle beam |
| 6 - | Mounting bracket |
Questions & answers
Assembly overview - rear vehicle level sender, torsion beam axle — Volkswagen Golf Mk7
What does the Golf Mk7 torsion beam rear level sender assembly show?
Sender mounted on the body, link rod connected to the trailing arm. Measures rear ride height.
