Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - heat shield

This assembly overview covers all three Volkswagen Golf Mk7 heat shields: underbody (6 retainers), centre exhaust system (2 retainers) and rear silencer — each protecting the body from exhaust heat.

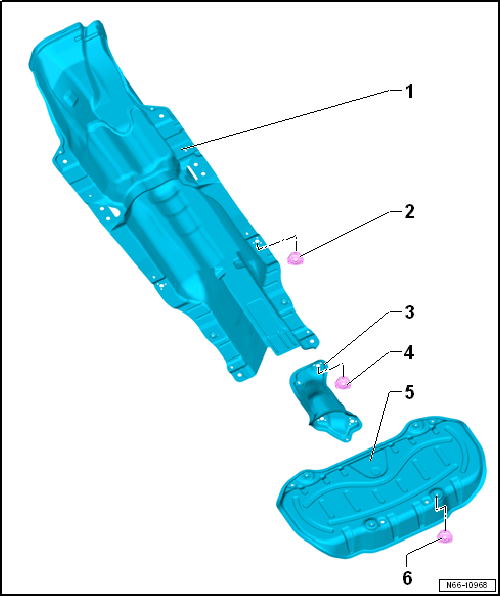

Assembly overview - heat shield

1 -  Underbody heat shield
  • Removing and installing → Chapter
2 -  Retainer
  • Qty. 6
3 -  Heat shield for centre exhaust system
  • Removing and installing → Chapter.
4 -  Retainer
  • Qty. 2
5 -  Heat shield for rear silencer
  • Removing and installing → Chapter.
6 -  Retainer
  • Qty. 5

    Questions & answers

    Assembly overview - heat shield — Volkswagen Golf Mk7

    What heat shields does the Golf Mk7 have?
    An underbody heat shield, a centre exhaust heat shield, and a rear silencer heat shield. Each is held by retainers or bolts and protects the floor from exhaust heat.
