Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing fuel tank flap
This page covers removing just the fuel tank flap itself from its unit on the Volkswagen Golf Mk7 — pushing it out of the retaining catches — a simpler job than removing the entire tank flap unit assembly.
| Removing |

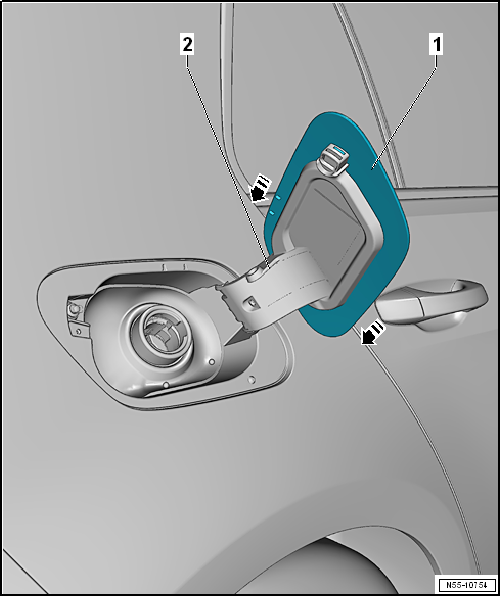

| – | Push tank flap -1- out of catches of tank flap unit -2--arrows-. |
| – | Remove tank flap. |
| Installing |
| – | Position tank flap -1- on tank flap unit -2-. |
| – | Slide tank flap into catches of tank flap unit. |
Questions & answers
Removing and installing fuel tank flap — Volkswagen Golf Mk7
How do I remove the Golf Mk7 fuel tank flap?
Push the flap out of the catches on the tank flap unit housing and remove it. Installation is the reverse — slide it back into the catches.
Can the Golf Mk7 fuel tank flap be replaced separately?
Yes. The flap is a clip-on component that can be replaced without removing the entire tank flap unit.
