Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing front tunnel cross-piece

Using torque wrench -V.A.G 1331-, this page covers removing the Volkswagen Golf Mk7 front tunnel cross-piece — remove the centre underbody panel if fitted, then unbolt and lift the cross-piece free.

Special tools and workshop equipment required



Torque wrench -V.A.G 1331-
Torque wrench -V.A.G 1331-

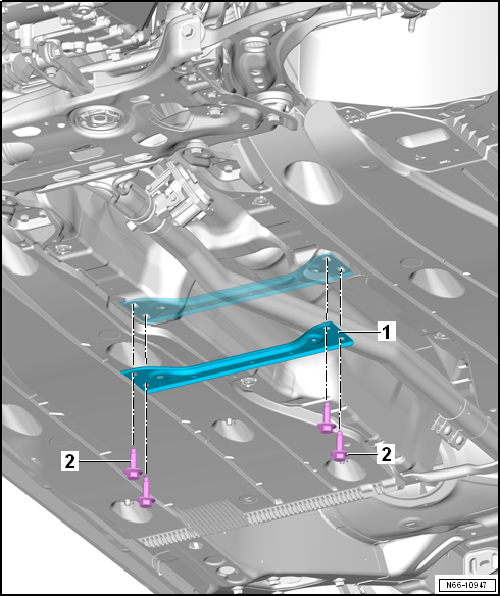

Removing and installing front tunnel cross-piece

Removing
–  If fitted, remove centre underbody panel → Chapter
–  Remove bolts -2-.
–  Remove front tunnel cross-piece -1-.
Installing
Install in the reverse order of removal observing the following:
Specified torques
  Bolts → Item

    Questions & answers

    Removing and installing front tunnel cross-piece — Volkswagen Golf Mk7

    What is the Golf Mk7 front tunnel cross-piece?
    A structural brace across the transmission tunnel under the car. It adds rigidity to the floor pan. Requires torque wrench -V.A.G 1331- for removal.
