Volkswagen Golf Mk7 Service & Repair Manual: Overview of fitting locations - seat belts and anchorage points, 4-door model

This overview maps every seat belt component and anchorage point on the 4-door Volkswagen Golf Mk7: front belt buckles, belt end anchors, and the front three-point belt with its tensioner igniter.

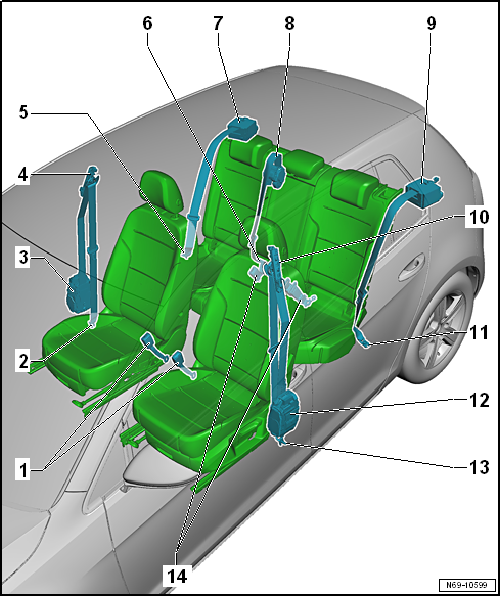

Overview of fitting locations - seat belts and anchorage points, 4-door model

1 -  Front belt buckles
  • Assembly overview → Chapter.
  • Removing and installing → Chapter
2 -  Front belt end anchor
  • Assembly overview → Chapter
  • Removing and installing → Chapter
3 -  Front three-point seat belt
  • With front passenger seat belt tensioner igniter 1 -N154- and control unit for front right belt tensioner -J855-
  • Assembly overview → Chapter
  • Removing and installing → Chapter
4 -  Belt height adjustment
  • Assembly overview → Chapter.
  • Removing and installing → Chapter
5 -  Rear outer belt end fitting
  • Assembly overview → Chapter
  • Removing and installing → Chapter
6 -  Rear centre belt end fitting
  • Assembly overview → Chapter
  • Removing and installing → Chapter
7 -  Belt inertia reel
  • For rear outer three-point seat belt
  • Assembly overview → Chapter
  • Removing and installing → Chapter
8 -  Belt inertia reel
  • For rear centre three-point seat belt.
  • Assembly overview → Chapter
  • Removing and installing → Chapter
9 -  Belt inertia reel
  • For rear outer three-point seat belt
  • Assembly overview → Chapter
  • Removing and installing → Chapter
10 -  Belt height adjustment
  • Assembly overview → Chapter
  • Removing and installing → Chapter
11 -  Rear outer belt end fitting
  • Assembly overview → Chapter
  • Removing and installing → Chapter
12 -  Belt inertia reel
  • For front three-point seat belt
  • With driver seat belt tensioner igniter 1 -N153- and control unit for front left belt tensioner -J854-
  • Assembly overview → Chapter
  • Removing and installing → Chapter
13 -  Front belt end anchor
  • Assembly overview → Chapter
  • Removing and installing → Chapter
14 -  Rear belt buckle
  • Assembly overview → Chapter
  • Removing and installing → Chapter
