Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing remote control receiver for auxiliary coolant heater -R149-, Golf and Golf GTE

Note: if the Golf/GTE remote control receiver -R149- is renewed, it must be adapted to the auxiliary/supplementary heater afterward — this page gives the removal procedure.

Note If the remote control receiver for auxiliary coolant heater -R149- is renewed, the remote control receiver for auxiliary coolant heater -R149- needs to be adapted to the auxiliary and supplementary heater using the vehicle diagnostic tester in “Guided fault finding” mode. Removing –  Remove right C-pillar trim → General body repairs, interior; Rep. gr.70.

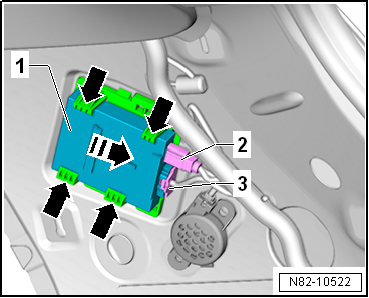

–  Disengage remote control receiver for auxiliary coolant heater -R149--1- using suitable tool at points marked with -arrows-. –  Pull remote control receiver for auxiliary coolant heater -R149--1- off bracket in -direction of arrow-. –  Separate connectors -2- and -3-. Installing Install in reverse order.   Note If the remote control receiver for auxiliary coolant heater -R149- is renewed, the remote control receiver for auxiliary coolant heater -R149- needs to be adapted to the auxiliary and supplementary heater using the vehicle diagnostic tester in “Guided fault finding” mode. Specified torque Trims, interior; Assembly overview - C-pillar trim → General body repairs, interior; Rep. gr.70.
