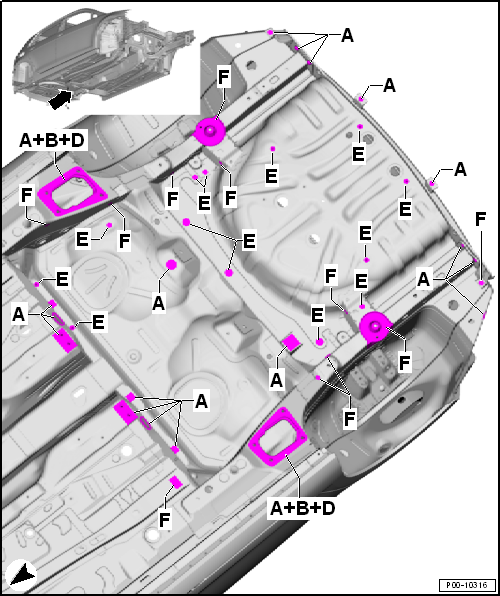

| Masking areas, rear underbody |
| A - |
No sealant on threads or contact surfaces. |
| D - |
Threads free of surfacer and top-coat paint (joint surface may be
painted) |
| E - |
Threads free of accumulated PVC. |
| F - |
Contact surface free of accumulated PVC. |

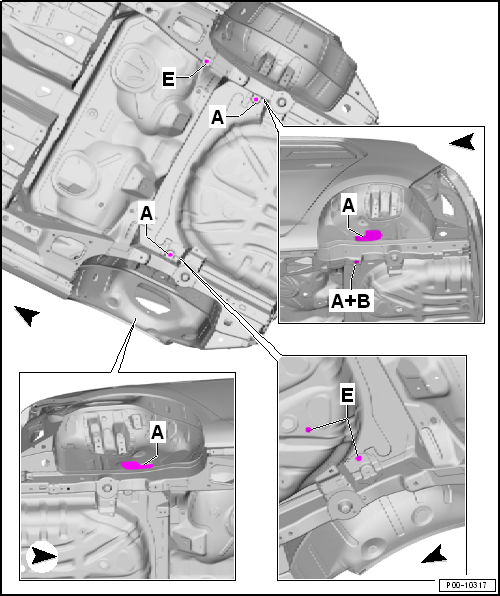

| Masking areas, rear underbody, vehicles with multi-link suspension |
| A - |
No sealant on threads or contact surfaces. |
| E - |
Threads free of accumulated PVC. |

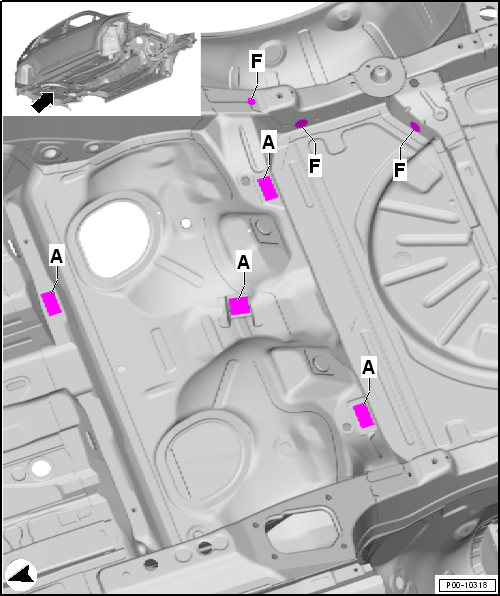

| Masking areas, rear underbody, 4-Motion vehicles |
| A - |
No sealant on threads or contact surfaces. |
| F - |
Contact surface free of accumulated PVC. |

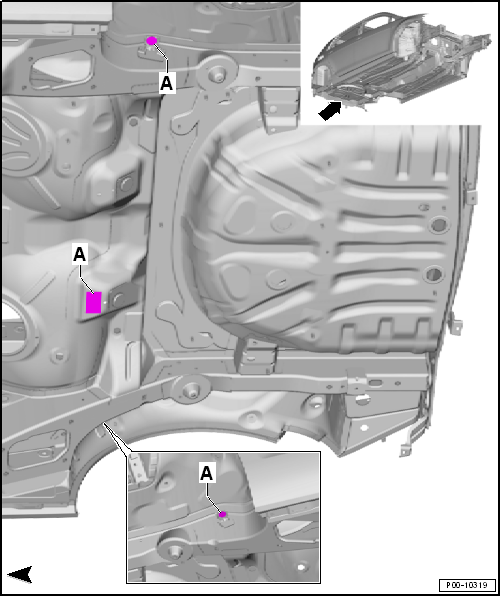

| Masking areas, rear underbody, vehicles with torsion beam rear
suspension |
| A - |
No sealant on threads or contact surfaces. |

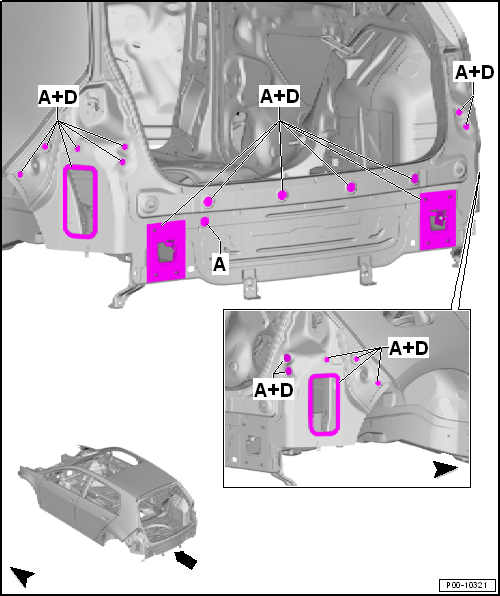

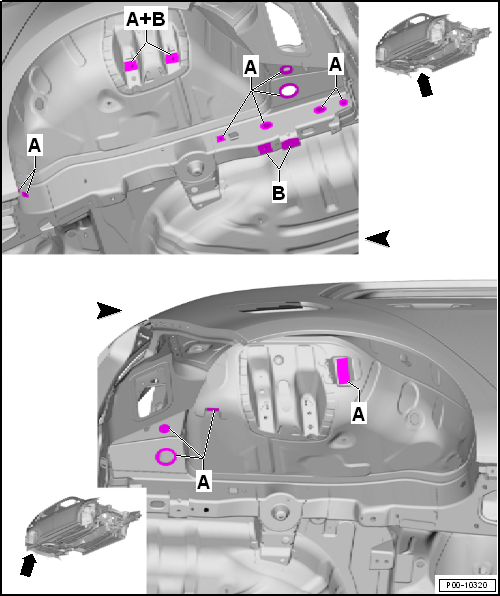

| Masking areas in rear left and right wheel housing liner |
| A - |
No sealant on threads or contact surfaces. |
| A - |
No sealant on threads or contact surfaces. |
| D - |
Threads free of surfacer and top-coat paint (joint surface may be
painted) |

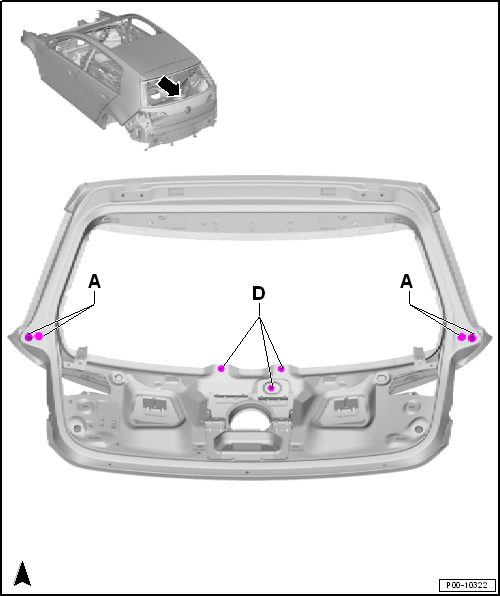

| A - |
No sealant on threads or contact surfaces. |
| D - |
Threads free of surfacer and top-coat paint (joint surface may be
painted) |
Masking areas, body of CNG-powered vehicles

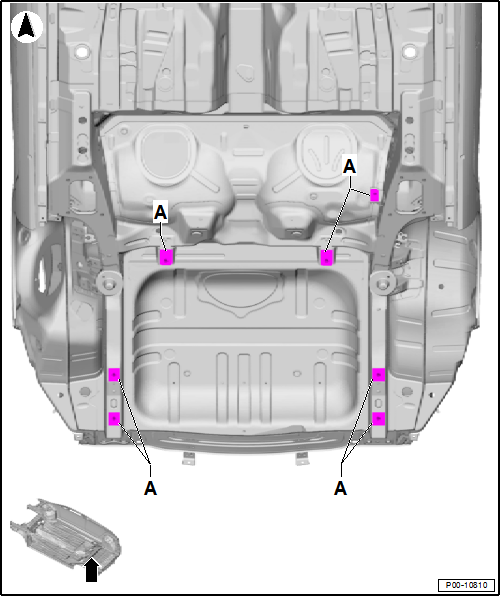

| Masking areas, rear underbody of CNG-powered vehicles |
| A - |
No sealant on thread or contact surfaces |
