| From air filter to pressure control valve |
| 3 - |
Pressure regulating valve |
| With tank pressure sensor -G400- |
| 5 - |
Activated charcoal filter |
| Fitting location: In rear right wheel housing beneath wheel housing
liner |
| Removing and installing
→ Chapter. |
| To activated charcoal filter solenoid valve 1 -N80- |
Questions & answers

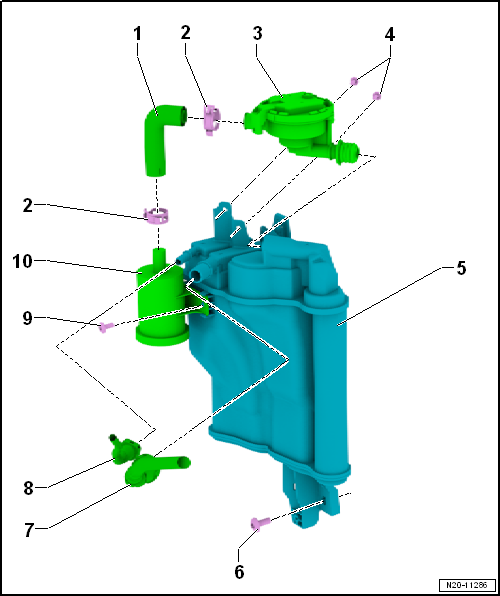

Assembly overview - activated charcoal filter system — Volkswagen Golf Mk7
What does the Golf Mk7 charcoal filter assembly show?
Canister, mounting bracket, vapour hoses, purge valve and leak detection components.
Note
Fuel tank leak detection takes advantage of the fact that a
vacuum develops naturally in the fuel system as the fuel in the
tank cools. The variab ...
Removing
–
Observe safety instructions
→ Chapter.
–
Observe rules for cleanliness
...
