 Note
| Only use new brake fluid conforming to VW standard (VW 501 14). |
|
|
|
| 1 - |
Self-locking hexagon nut |
| Always renew after removing |
| 2 - |
Pedal cluster with mounting bracket |
| 3 - |
Plenum chamber bulkhead |
| 4 - |
Self-locking hexagon nut |
| Always renew after removing |
| 5 - |
Brake master cylinder |
| Cannot be repaired. If faulty, renew as a complete unit. |
| Removing and installing
→ Chapter |
| 6 - |
Brake light switch -F- |
| Removing and installing
→ Chapter |
| From secondary piston circuit of brake master cylinder to hydraulic
unit. |
| From primary piston circuit of brake master cylinder to hydraulic
unit. |
| Moisten with brake fluid and press into brake fluid reservoir. |
| 11 - |
Brake fluid level warning contact --F34-- |
| 12 - |
Brake fluid reservoir |
| On some vehicles with petrol engines, vacuum sender -G608- is
installed in brake servo
→ Chapter |
| Vacuum hose for brake servo |
| Between brake master cylinder and brake servo |
| – |
With engine switched off, depress brake pedal firmly several times
(to exhaust vacuum in unit). |
| – |
Now step on and hold brake pedal with medium pressure and start
engine. If the brake servo is functioning properly, the brake pedal will
be felt to go down as the servo takes effect. |
| Replace completely in the event of a fault (before doing so, check
brake servo vacuum system)
→ Chapter |
| Removing and installing
→ Chapter |
| Bonded (only when originally assembled at factory) |
| Bonded joint at brake servo and plenum chamber bulkhead does not
have to be renewed |
Questions & answers

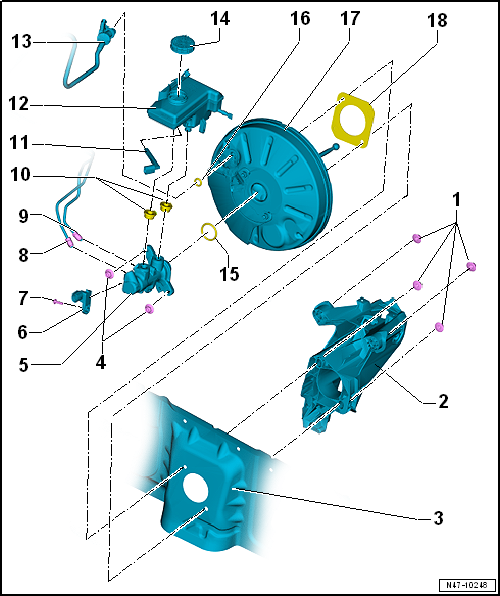

Assembly overview - brake servo/brake master cylinder, LHD vehicles — Volkswagen Golf Mk7
What does the Golf Mk7 LHD servo/master cylinder assembly show?
Servo unit, master cylinder, reservoir, pushrod, mounting nuts, vacuum hose and brake light switch position.
Note
Only use new brake fluid conforming to VW standard (VW 501 14).
1 -
Cap
...
Assembly overview - brake servo/brake master cylinder, RHD vehicles
