Using diagnostic tester with 100A current probe -VAS 5051B/7-, this page covers checking the RHD Volkswagen Golf Mk7 auxiliary air heater element -Z35- — the same intake and coolant temperature test conditions apply.
| Special tools and workshop equipment
required |
| Vehicle diagnostic tester with current probe 100 A -VAS
5051B/7- |
| Intake temperature less than 19° C |
| Coolant temperature less than 80° C |
| Passenger compartment temperature about 20° C |
| Battery voltage greater than 11 V |
| Alternator load not greater than 50 % (terminal DF) |
| Engine speed greater than 450 rpm |
| Turn rotary knob for interior temperature to highest
temperature (on vehicles with Climatronic select highest level). |
| – |
Remove centre console
→ General body repairs, interior; Rep. gr.68. |
| – |
Remove glove compartment
→ General body repairs, interior; Rep. gr.68. |
| – |
Detach dash board in vicinity of glove compartment far
enough that dash board can be pulled away sufficiently to pull
out auxiliary air heater element - Z35-. |
|
|
|
| – |

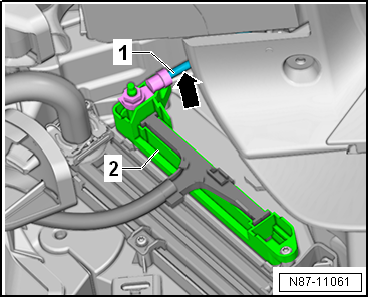

Using vehicle diagnostic tester and current probe 100 A -VAS
5051B/7-, measure current draw -arrow-
on earth wire -1- of auxiliary air
heater element -Z35--2-. |
| Low heat output: ≈ 30 amps |
| Medium heat output: ≈ 60 amps |
| High heat output: ≈ 80 amps |
|
|
|
