Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - three-point seat belt, 4-door model, without belt tensioner
This assembly overview covers the 4-door Volkswagen Golf Mk7 rear seat belt without a tensioner: the inertia reel and two 40 Nm bolts, both marked for mandatory renewal after an accident.

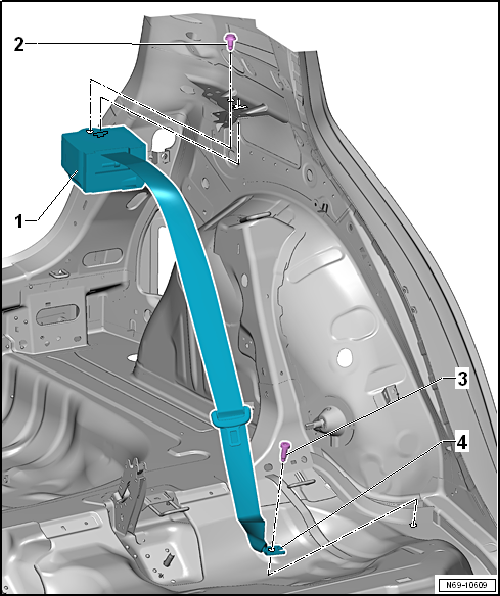

| 1 - | Belt inertia reel
|
- Removing and installing → Chapter
| 2 - | Bolt |
- If removed due to an accident with seat belt fastened, renew bolt
- 40 Nm
| 3 - | Bolt |
- If removed due to an accident with seat belt fastened, renew bolt
- 40 Nm
| 4 - | Rear outer belt end fitting |
- Removing and installing → Chapter
Questions & answers
Assembly overview - three-point seat belt, 4-door model, without belt tensioner — Volkswagen Golf Mk7
What does the Golf Mk7 4-door rear belt without tensioner assembly show?
Inertia reel, bolt (40 Nm), belt guide and hardware. Same crash-renewal rules apply.
Assembly overview - three-point seat belt, 2-door model, with belt tensioner
1 -
Belt inertia reel
Removing and installing
→ Chapter
2 -
Electrical wiring harness
3 -
Bolt
...
Assembly overview - three-point seat belt, 4-door model, with belt tensioner
1 -
Belt inertia reel
Removing and installing
→ Chapter
2 -
Electrical wiring harness
3 -
Bolt
...
