Remove baffle plate
→ Chapter. |
|
|
|
| – |

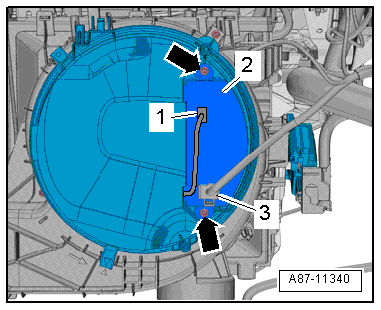

Disconnect electrical connectors -1-
and -3-. |
| – |
Unscrew bolts -arrows-. |
Risk of burns when touching the hot cooling surface of the fresh air
blower control unit. Risk of burns to the hands.Always wear safety
gloves.
| – |
Remove control unit -2- on
fresh air blower -V2-. |
| Installation is carried out in the reverse order. When
installing, note the following: |
| – |
Check operation of fresh air blower -V2-. |
| → Chapter „Assembly overview - add-on parts of heater and air
conditioning unit and of air intake box“ |
|
|
|
