Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - cover and padding for seat pan

This assembly overview covers the Volkswagen Golf Mk7 seat pan cover and padding: the upholstery clip attaching the two together — cross-referenced to both the combined removal and the separation procedures.

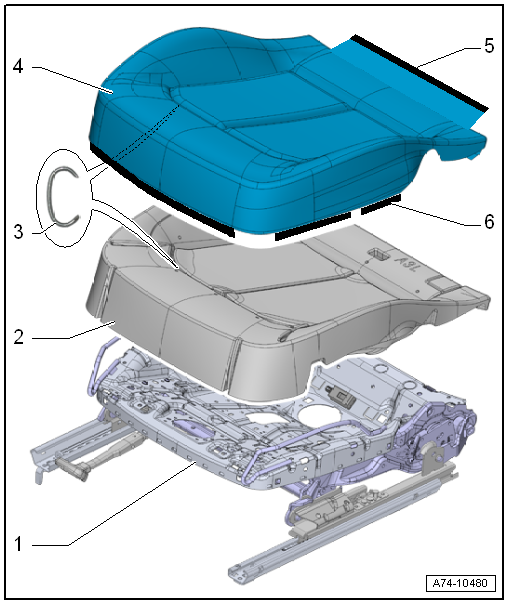

Assembly overview - cover and padding for seat pan

1 -  Seat pan
  • Assembly overview → Chapter
2 -  Seat padding
  • Allocation → Electronic Parts Catalogue
  • Removing and installing seat cover with seat padding → Chapter
  • Separating seat cover from seat padding → Chapter
3 -  Upholstery clip
  • For attaching seat cover to seat padding
  • Renew after removal
  • When installing, fit in same location using upholstery clip pliers -V.A.G 1634
4 -  Seat cover
  • Different equipment versions
  • Allocation → Electronic Parts Catalogue
  • Removing and installing seat cover with seat padding → Chapter
  • Separating seat cover from seat padding → Chapter
  • After installation, check that there are no creases in seat.
5 -  Channel
  • Sewn to seat cover
  • For attaching seat cover to upper frame of seat pan
  • Ensure it is properly seated in upper frame of seat pan
6 -  Channel
  • Sewn to seat cover
  • For attaching seat cover to upper frame of seat pan
  • Ensure it is properly seated in upper frame of seat pan
