| Special tools and workshop equipment
required |
|
|
|
| – |

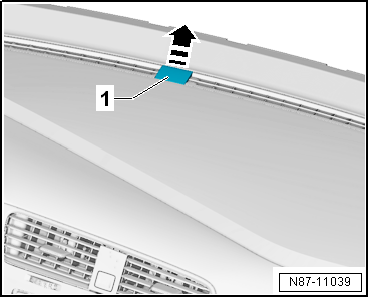

Unclip sunlight penetration photosensor
-1- in direction of arrow from dash
panel. |
| – |
Install in reverse order. |
|
|
|
Questions & answers
Removing and installing sunlight penetration photosensor -G107- — Volkswagen Golf Mk7
How do I remove the Golf Mk7 sun sensor -G107-?

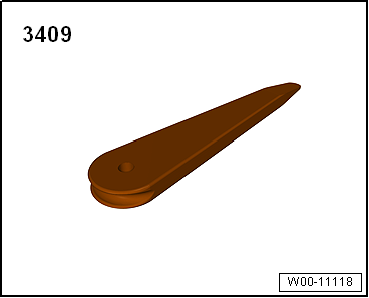

Use removal wedge -3409-. Unclip from the dash panel top surface.
The air quality sensor detects noxious substances in the
ambient air (primarily petrol and/or diesel fumes).
The Climatronic control unit -J255 ...
