Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing air duct for defroster vent

This page covers removing the Volkswagen Golf Mk7 defroster vent air duct — remove the dash panel first, then unclip the wiring harness from the sunlight penetration photosensor -G107-.

Removing
–  Remove dash panel → General body repairs, interior; Rep. gr.70.

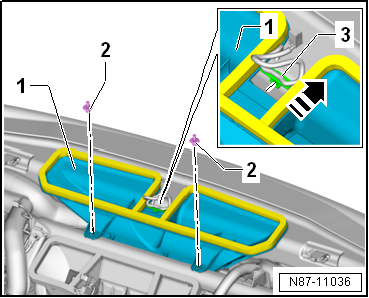

–  Unclip wiring harness -3- in -direction of arrow- from sunlight penetration photosensor -G107-.
–  Remove clips -2-.
–  Remove air duct for defroster vent -1- upwards from heater and air conditioning unit.
Installing
Installation is carried out in reverse order of removal.
Specified torques
Dash panel; Assembly overview - dash panel → General body repairs, interior; Rep. gr.70.


Removing and installing air duct for defroster vent
