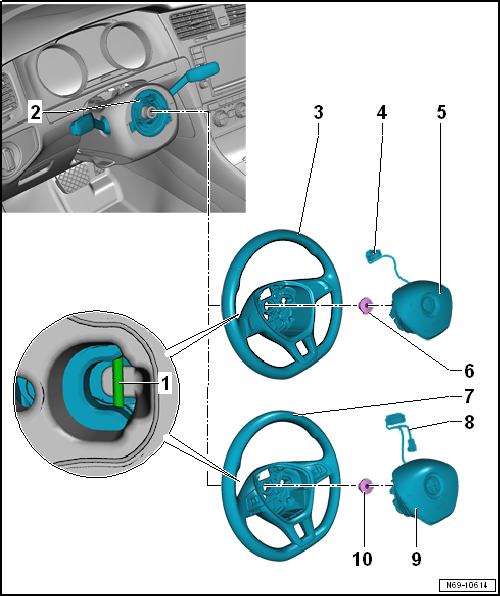

- To release, use a Torx screwdriver T25 of approx. 100 mm length
| 2 - |
Steering column electronics control unit -J527- |
- With airbag coil connector and return ring with slip ring -F138-
- Assembly overview
→ Electrical system; Rep. gr.94
| 3 - |
Steering wheel without multifunction button |
- Equipment version
- Assembly overview
→ Running gear, axles, steering; Rep. gr.48
| 4 - |
Wiring harness without wires for multifunction button |
- For driver side airbag igniter -N95
- Renewing
→ Chapter
- Press into recesses in steering wheel to secure it.
- With driver side airbag igniter -N95-
 WARNING
| Observe safety instructions for pyrotechnic components
→ Chapter. |
|
| |
Removing and installing
→ Chapter |
- Tightening torque
→ Running gear, axles, steering; Rep. gr.48
| 7 - |
Steering wheel with multifunction button |
- Equipment version
- Assembly overview
→ Running gear, axles, steering; Rep. gr.48.
| 8 - |
Wiring harness with wires for multifunction button |
- For driver side airbag igniter -N95
- Renewing
→ Chapter
- Press into recesses in steering wheel to secure it
- With driver side airbag igniter -N95-
WARNING
| Observe safety instructions for pyrotechnic components
→ Chapter. |
|
- Removing and installing
→ Chapter
- Tightening torque
→ Running gear, axles, steering; Rep. gr.48
