Using removal wedge -3409-, thrust piece -T10502- (FNc-M38 15") or -T10146/5- (FNc-M42 17"), this page covers removing the Volkswagen Golf Mk7 rear caliper protective cap.
| Special tools and workshop equipment
required |
|
|
|
| Thrust piece -T10502- for rear brake FNc-M38 (15”) |
|
|
|
| Thrust piece -T10146/5- for rear brake FNc-M42 (17”) |
|
|
|
| Piston resetting appliance -T 10145- |
| Only the protective cap is intended to be renewed. |
 Note
| The brake caliper does not need to be removed in order to
renew the protective cap; do not unbolt the break hose. |
| Piston has been moved back. |
| Parking brake motor has been removed. |
Risk of damage to ball screw due to removal of piston and compressor
nut.Never unscrew piston and compressor nut completely. |
|
|
| – |

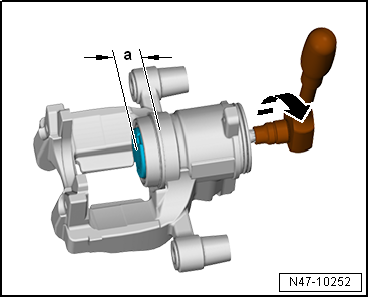

Unscrew piston (-direction of arrow-)
by maximum of 20 mm (-dimension a-)
using an E11 Torx socket. |
|
|
|
| – |

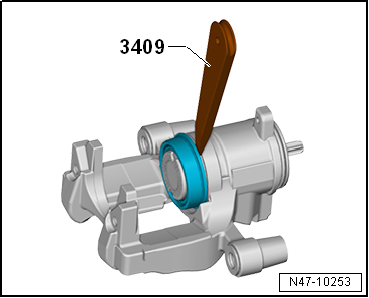

Lever protective cap off brake caliper using wedge 3409
-arrows-. |
| Install in reverse order of removal, observing the
following: |
| – |
The surfaces of the piston and brake caliper must be cleaned
only with methylated spirits, and then dried. |
|
|
|
| – |

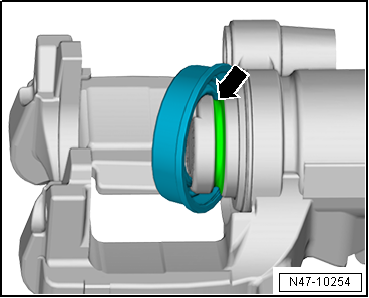

Insert protective cap into groove
-arrow- in piston. |
|
|
|
| – |

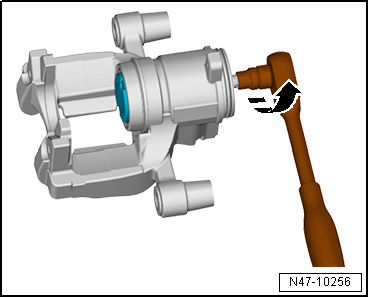

Screw piston back in (-direction of
arrow-). |
|
|
|
| – |

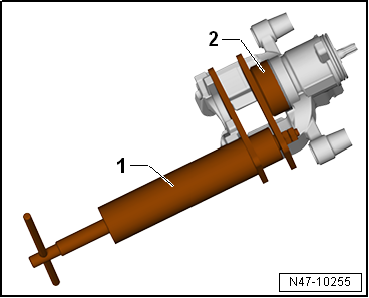

Push protective cap onto brake caliper using assembly tool
-T10502--2- and piston resetting
appliance -T 10145--1- in such a
way that protective cap lies against brake caliper all round its
circumference. |
|
|
|
