Volkswagen Golf Mk7 Service & Repair Manual: Overview - rear axle, multi-link suspension

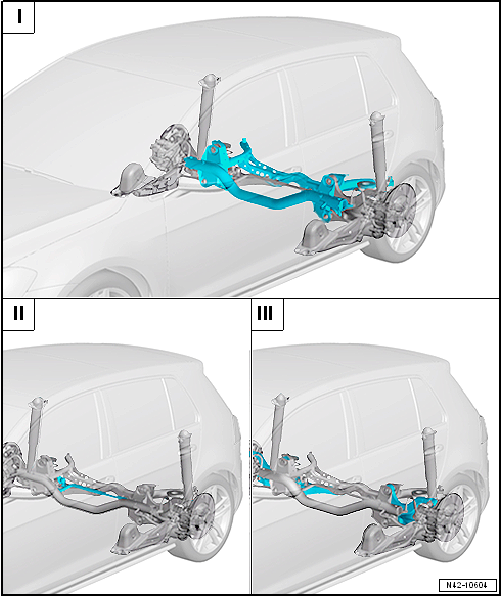

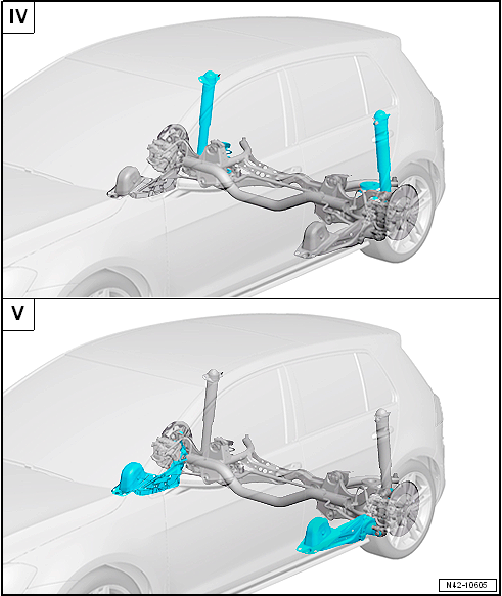

This overview indexes the multi-link suspension rear axle component groups: subframe, anti-roll bar, suspension link/track rod, suspension strut/shock absorber/spring, and wheel bearing assembly.
| I - | → Chapter „Subframe“ |
| II - | → Chapter „Anti-roll bar“ |
| III - | → Chapter „Suspension link, track rod“ |
| IV - | → Chapter „Suspension strut, shock absorber, spring“ |
| V - | → Chapter „Wheel bearing assembly, trailing arm“ |
Questions & answers
Overview - rear axle, multi-link suspension — Volkswagen Golf Mk7
What does the Golf Mk7 rear multi-link suspension overview show?
Subframe, upper and lower transverse links, track rod, trailing arm, spring, shock absorber and wheel bearing housing — all labelled with bolt positions.
Rear axle
Overview - rear axle, torsion beam axle
I -
→ Chapter „Axle beam“
II -
→ Chapter „Suspension strut, shock absorber, s ...
Overview - rear axle, multi-link suspension, four-wheel drive
I -
→ Chapter „Subframe“
II -
→ Chapter „Anti-roll bar“
III -
→ Chapter „Sus ...
