Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing fuel gauge sender -G-, vehicles with four-wheel drive

This page covers removing the 4MOTION Volkswagen Golf Mk7 fuel gauge sender — remove the delivery unit first, then disconnect the connector from the right flange.

Removing

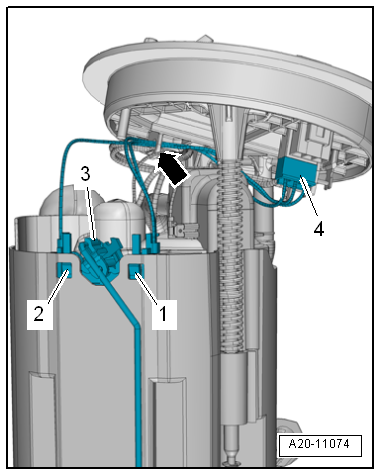

–  Remove fuel delivery unit → Chapter.
–  Disconnect connector -4- from right flange.

–  Disengage and move clear electrical wiring at retainer -arrow-.
–  Release locking lugs -1 and 2- from tabs.
–  Pull out fuel gauge sender -G--3- upwards.
Installing
Installation is carried out in the reverse order; note the following:
–  Insert fuel gauge sender -G- into guides on fuel delivery unit and press down until it engages.
–  Route and attach electric cables on fuel delivery unit.
–  Install fuel delivery unit → Chapter.


Removing and installing fuel gauge sender -G-, vehicles with four-wheel drive

    Questions & answers

    Removing and installing fuel gauge sender -G-, vehicles with four-wheel drive — Volkswagen Golf Mk7

    How do I remove the Golf Mk7 4WD fuel gauge sender -G-?
    Same as FWD. The sender shape differs for the 4WD tank geometry.
