Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing engine speed sender -G28-

Using socket AF 4 mm -T10370-, this page covers removing the Volkswagen Golf Mk7 engine speed sender -G28- — remove the noise insulation first, then push the charge air cooling components aside.

Special tools and workshop equipment required

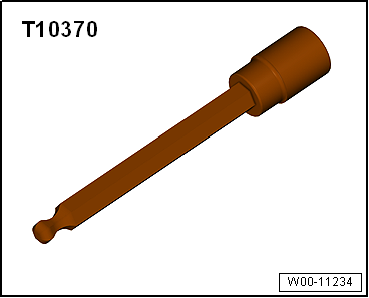

Socket AF 4 mm -T10370- Removing –  Remove noise insulation → General body repairs, exterior; Rep. gr.66.

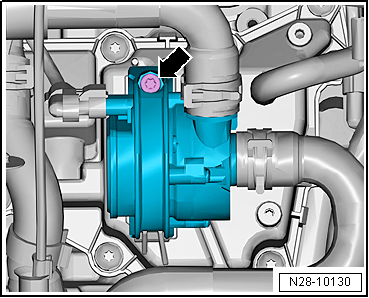

–  Unscrew bolt -arrow- and push charge air cooling pump -V188- to one side.

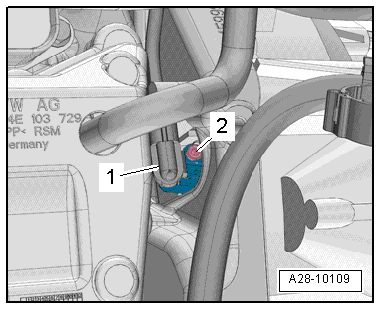

–  Disconnect electrical connector -1-. –  Unscrew bolt -2- and remove engine speed sender -G28-. Installing   Note Carefully insert engine speed sender -G28- in bore! This will prevent the engine speed sender -G28- from falling between engine and gearbox. –  Install in reverse order. –  Install noise insulation → General body repairs, exterior; Rep. gr.66. Specified torques → Chapter „Assembly overview - ignition system“ → Chapter „Assembly overview - electric coolant pump“

Questions & answers

Removing and installing engine speed sender -G28- — Volkswagen Golf Mk7

How do I remove the Golf Mk7 1.4 TSI engine speed sender -G28-?

The crankshaft position sensor is near the flywheel. Disconnect the connector, unbolt and remove.
