| Remove and install with oil filter tool -3417-. |
| Before installing, lightly coat seal with clean engine oil. |
| 2 - |
Oil pressure switch for reduced oil pressure -F378- |
| Switch pressure 0.3…0.6 bar |
| If removed, oil pressure switch must be renewed |
| Removing and installing
→ Chapter |
| The seal cannot be replaced individually |
| If removed, oil pressure switch must be renewed |
| 5 - |
Oil pressure control valve -N428- |
| Removing and installing
→ Chapter |
| The seal cannot be replaced individually |
| If removed, oil pressure switch must be renewed |
| 8 - |
Oil pressure switch -F1- |
| Switch pressure 2.15…2.95 bar |
| If removed, oil pressure switch must be renewed |
| Removing and installing
→ Chapter |
Questions & answers

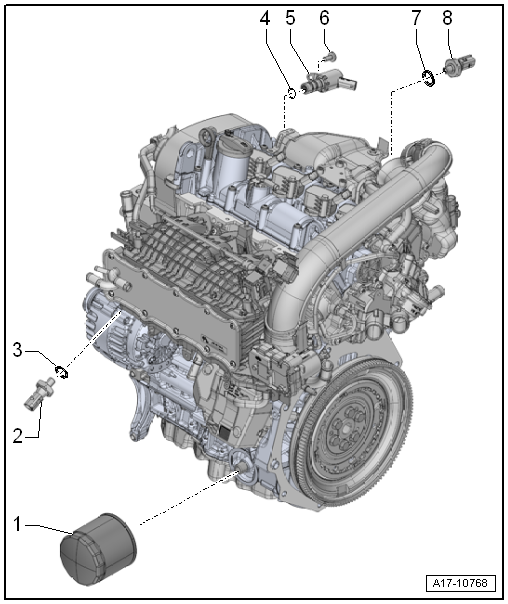

Assembly overview - oil filter/oil pressure switch — Volkswagen Golf Mk7
What does the Golf Mk7 1.4 TSI oil filter assembly show?
Filter housing, filter element, drain plug, pressure switch -F1- and pressure regulating valve -N428- positions.
Special tools and workshop equipment
required
Jointed wrench 24 mm -T40175-
Remo ...
