Remove front seat
→ Chapter. |
| – |
Secure front seat on seat repair stand
→ Chapter. |
| – |
Move front seat to highest position. |
| – |
Remove seat trim on tunnel side
→ Chapter. |
| – |
Turn adjustment knob of backrest adjustment towards front as
far as stop. |
|
|
|
| – |
Detach cable support bracket -2-
of Bowden cable B from retainer for entry assistance on seat
pan. |
| – |

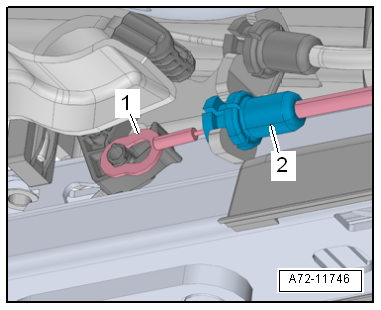

Detach eye -1- of Bowden cable
B for entry assistance from pin of seat longitudinal adjustment. |
|
|
|
| – |

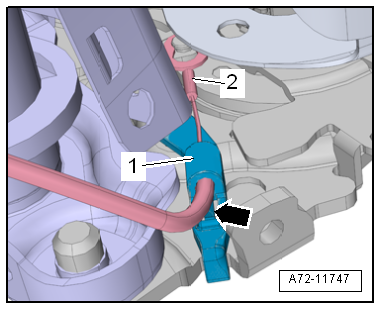

Detach cable support bracket -1-
of Bowden cable B from backrest fitting. To do this, release
catch -arrow-. |
| – |
Detach eye -2- of Bowden cable
B for entry assistance from pin of backrest fitting using a
screwdriver and remove it. |
| Installation is carried out in reverse order. |
| |
→ Chapter „Assembly overview - front seat“ |
|
|
|
