| Special tools and workshop equipment
required |
|
|
|
| Torque wrench -V.A.G 1332- |
|
|
|
| – |

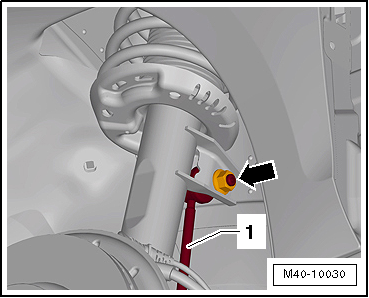

Unscrew nut -arrow- and pull
coupling rod -1- off suspension
strut. |
|
|
|
| – |

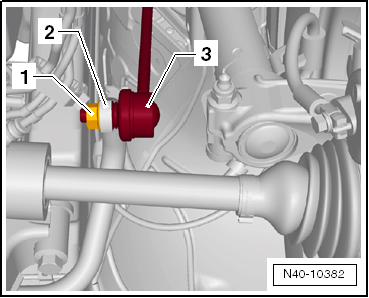

Unscrew nut -1- from coupling
rod -3-. |
| – |
Pull coupling rod -3- out of
anti-roll bar -2-. |
| Install in reverse order of removal, observing the
following: |
| Tighten nuts of coupling rod on suspension strut/anti-roll
bar, if necessary, counterhold at multi-point socket head. |
| → Chapter „Assembly overview - subframe“ |
|
|
|
Repairing thread in longitudinal member
| Repairing the thread in welded nuts in the longitudinal
member is possible under certain conditions; Body repair
→ Rep. gr.50. |
|
|
|
Questions & answers
Removing and installing coupling rod — Volkswagen Golf Mk7
How do I remove the Golf Mk7 front anti-roll bar coupling rod?
Unbolt the ball joints at the bar and the strut. Hold the ball pin with an Allen key while loosening the nut. Renew self-locking nuts.
Special tools and workshop equipment
required
Torque wrench -V.A.G 1332-
...
Note
Certain repairs on vehicles require the removal of the
subframe or the entire front axle.
The original position of t ...
