Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - bumper cover

This assembly overview covers the Volkswagen Golf Mk7 rear bumper cover (PP/EPDM material), noting minor model-dependent differences — cross-referenced to ETKA for the correct guide bracket allocation.

  Note
Minor differences may be encountered in respect of bumper cover, depending on vehicle model.

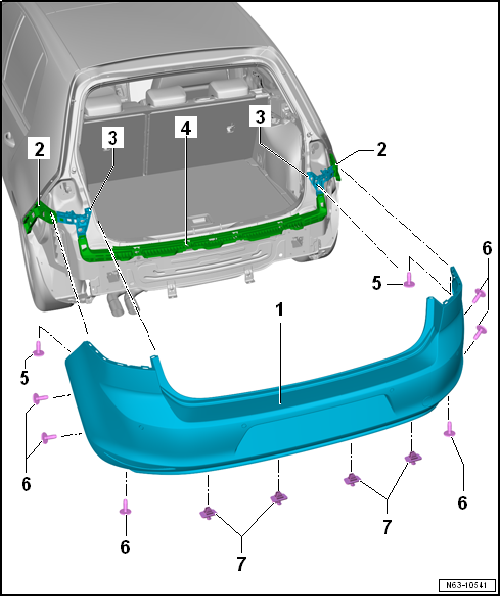

Assembly overview - bumper cover

1 -  Bumper cover
  • Material PP/EPDM
  • Removing and installing → Chapter
2 -  Guide bracket
  • Left and right.
  • Different versions, allocation → Electronic Parts Catalogue “ETKA”
3 -  Guide bracket
  • For tail light on left and right
  • Different versions, allocation → Electronic Parts Catalogue “ETKA”
4 -  Centre guide profile
5 -  Bolt
  • Left and right
  • Points upwards
  • Bolted to side panel.
  • 2.0 Nm
6 -  Bolt
  • Qty. 3 on each side
  • Bolted to wheel housing liner
  • 2 Nm
7 -  Spreader rivet
  • Qty. 4
