Volkswagen Golf Mk7 Owners Manual: Display and indicator lamps
Fig. 176 shows every Lane Assist display state in the Volkswagen Golf Mk7 instrument cluster: lane marking detected with the system not regulating, lane marking detected with the system actively regulating, and no lane marking detected at all. This page explains what each state means for your drive.

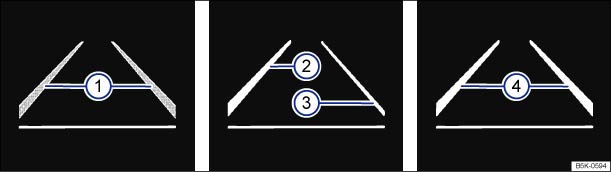

Fig. 176 In the instrument cluster display: lane departure warning system displays.
First read and observe the introductory information
and safety warnings Displays
Display fields :
Lane marking detected. System not regulating.
Lane marking detected. System is regulating.
No lane marking detected. System not
regulating.
Lane marking detected. System is regulating.
Adaptive lane guidance active.
Indicator lamps
| Lit up | Possible cause | Solution |
|---|---|---|
 |
Lane Assist is switched on but not active. | The system cannot clearly detect the lane. Refer to . |
 |
Lane Assist is switched on and active. | – |
Several warning and indicator lamps will light up briefly as a functional check when the ignition is switched on. They will switch off after a few seconds.
Questions & answers
Display and indicator lamps — Volkswagen Golf Mk7
What do the Golf Mk7 Lane Assist display symbols mean?
Green lane lines mean markings are detected and the system is ready. Yellow lane lines with a steering wheel mean the system is actively correcting. Grey lines mean no markings are detected.
Does the Golf Mk7 instrument cluster show Lane Assist status?
Yes. Lane marking detection, system readiness and active corrections are all shown in the instrument cluster display using coloured lane symbols.
What happens when Golf Mk7 Lane Assist cannot see lane markings?
The display shows grey lane symbols and the system is inactive. No steering correction or warning will occur until clear markings are detected again.
