Using electric cutter -V.A.G 1561A-, scraping blade -V.A.G 1561/20- and cartridge gun -V.A.G 1628-, this page covers installing roof reinforcement on a Volkswagen Golf Mk7 estate without a sliding sunroof — the moulded headliner must be removed first.
| Special tools and workshop equipment
required |
|
|
|
| |
|
Electric cutter -V.A.G 1561A |
| |
|
Scraping blade -V.A.G 1561/20 |
| |
|
Cartridge gun -V.A.G 1628 |
| |
|
Release lever -T10039 |
| – |
Use hand-cartridge gun -V.A.G 1628- to apply
single-component assembly adhesive (
→ Electronic Parts Catalogue) to roof reinforcements.
Observe the following dimensions while doing so. |
|
|
|
| – |

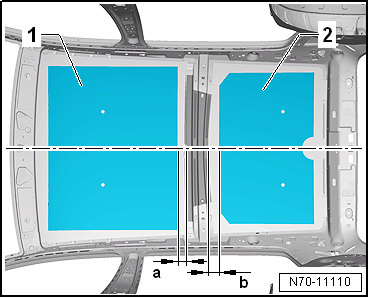

Measure roof reinforcements -1-
and -2- to width and mark centre of
both sides. |
| – |

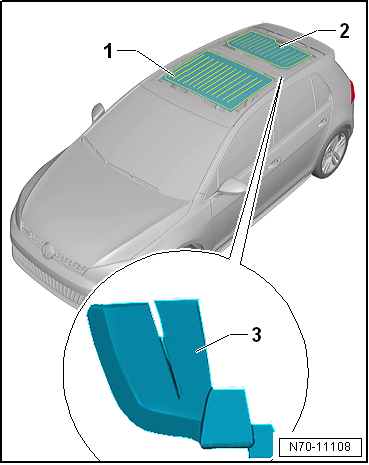

Guide roof reinforcement -1-
into vehicle. |
| – |
Position roof reinforcement -1-
according to -dimension a-
centrally on roof and press it on across entire surface. |

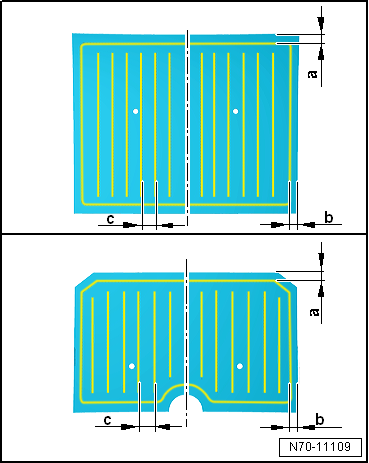

| Dimension -a- for saloon =
50.5 ± 3 mm from front sheet-metal edge. |
| Dimension -a- for estate
without sliding sunroof = 25 ± 1 mm from front sheet-metal edge. |
| – |
Guide roof reinforcement -2-
into vehicle. |
| – |
Position roof reinforcement -2-
according to -dimension b-
centrally on roof and press it on across entire surface. |
| Dimension -b- for saloon =
61 ± 3 mm from rear sheet-metal edge. |
| Dimension -b- for estate
without sliding sunroof = 25 ± 1 mm from rear sheet-metal edge. |
|
|
|
