Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - plenum chamber cover

This assembly overview covers the left and right plenum chamber covers on the Volkswagen Golf Mk7, their retaining clips, seal, and how they interface with the windscreen seal — the panels you lift to access the wiper mechanism and bulkhead beneath.

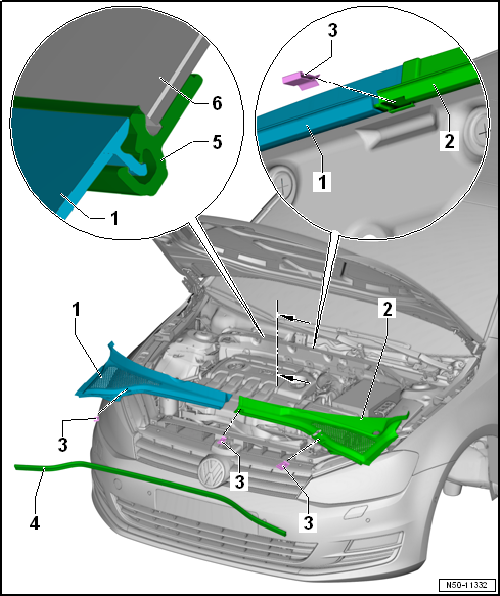

Assembly overview - plenum chamber cover

1 -  Plenum chamber cover
q   Right side
q   Removing and installing → Chapter
2 -  Plenum chamber cover
  • Left side
  • Removing and installing → Chapter
3 -  Clip
  • Qty. 3
4 -  Seal
5 -  Windscreen seal
  • Part of windscreen
6 -  Windscreen

    Questions & answers

    Assembly overview - plenum chamber cover — Volkswagen Golf Mk7

    What are the Golf Mk7 plenum chamber covers?
    Left and right plastic panels that sit over the plenum chamber, beneath the windscreen wipers. They clip into place and seal against the windscreen rubber.
    How are the Golf Mk7 plenum covers held in place?
    By clips (qty 3), a seal, and the windscreen surround rubber. They are removed by pulling off the seal and unclipping the cover panels.
