Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing manually operated anti-dazzle interior mirror, without rain and light sensor -G397- and front camera for driver assist systems -R242-

This page covers removing the Volkswagen Golf Mk7 basic interior mirror — turn it a quarter-turn anti-clockwise and lift it off the glued-on retaining plate.

Removing

Removing and installing manually operated anti-dazzle interior mirror, without rain and light sensor -G397- and front camera for driver assist systems -R242-

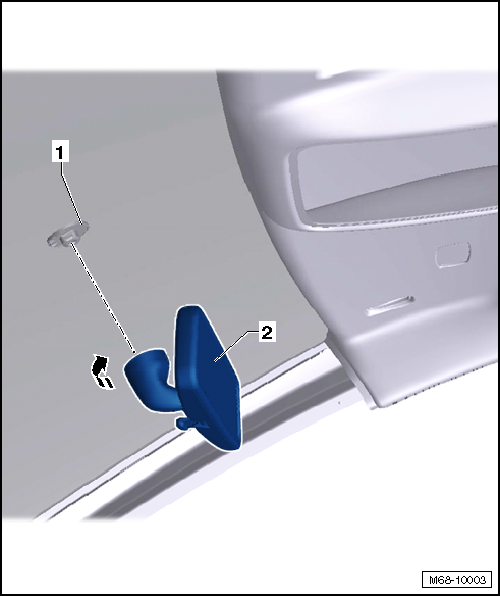

–  Turn interior mirror -2- anti-clockwise -arrow- by 90° (1/4 turn).
–  Remove interior mirror -2- from glued-on retaining plate -1-.

Installing
  Note
Before installing, check all fasteners for damage and renew if necessary.
Installation is carried out in reverse order.
