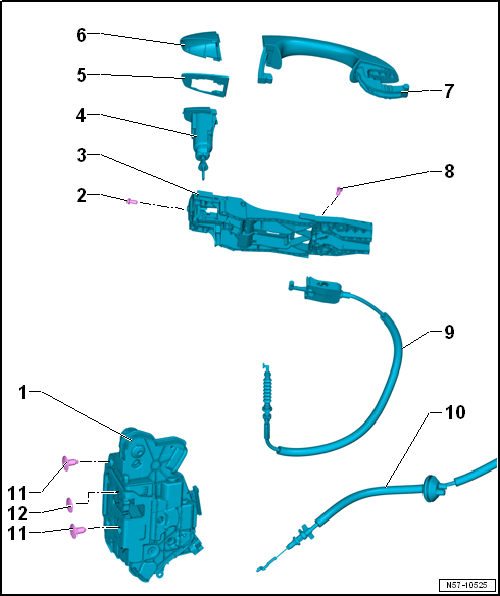

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - door handle and door lock

This assembly overview covers the Volkswagen Golf Mk7 front door lock and handle (left side shown; right is similar): the door lock, its 3 Nm lock cylinder bolt, the mounting bracket, and the lock cylinder itself — fitted only on the driver door.

  Note

Only the left side is shown. The right side is similar.

1 -

Door lock

• Removing and installing → Chapter

2 -

Bolt

• 3 Nm
• For lock cylinder

3 -	Mounting bracket

• Removing and installing → Chapter

4 -	Lock cylinder

• Removing and installing → Chapter
• Only installed on driver door.

5 -

Base

6 -

Cap

• Remove and install for lock cylinder → Chapter
• Removing and installing without lock cylinder → Chapter

7 -	Door handle

• Removing and installing → Chapter

8 -

Bolt

• 1.5 Nm
• Bearing plate is loosened from door when this bolt is loosened

9 -

Cable

• From door lock -1- to mounting bracket -3-

10 -

Cable

• From inner door handle to door lock -1-
• With grommet to passage on cover

11 -

Bolt

• Qty. 2
• 18 Nm

12 -

Cap
