Using torque wrench -V.A.G 1331- and brake pedal depressor -V.A.G 1869/2-, this page covers removing the PC57/C60 front brake caliper — the same exchange-only scope applies.
| Special tools and workshop equipment
required |
|
|
|
| Torque wrench -V.A.G 1331- |
|
|
|
| Brake pedal depressor -V.A.G 1869/2- |
 Note
| This procedure applies only to exchanging or the following
repair work on the brake caliper. |
| – |
Remove front wheel on relevant side. |
| – |
Disconnect connector for brake pad wear indicator. |
|
|
|
| – |
Connect bleed bottle bleed hose -1-
to bleed valve of brake caliper. |
|
|
|
| – |
Apply brake pedal depressor -V.A.G 1869/2-. |
| – |
Close bleed valve and remove bleed bottle. |
|
|
|
| – |

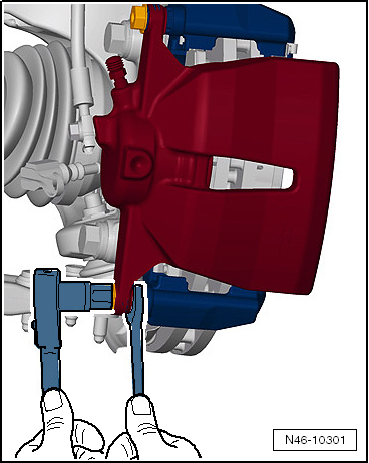

Unscrew both securing bolts from brake caliper,
counterholding on guide pin. |
| – |
Pull brake caliper off brake carrier. |
| Install in reverse order of removal, observing the
following: |
| The two brake pads are seated in the retaining springs on
the brake carrier. |
| – |
Carefully place brake caliper on brake carrier. |
| – |
Secure brake caliper to brake carrier with new self-locking
bolts, counterholding on guide pin. |
| – |
Screw brake hose onto brake caliper. |
| – |
Remove brake pedal depressor -V.A.G 1869/2-. |
| – |
Connect brake pad wear indicator connector. |
| – |
Bleed brake system
→ Chapter. |
| → Chapter „Assembly overview - front brakes PC57 and C60“ |
| Bleed valve
→ Chapter „Assembly overview - front brake caliper“ |
| Wheel bolts
→ Running gear, axles, steering; Rep. gr.44. |
Note
| Firmly depress brake pedal several times with vehicle
stationary so that the brake pads are properly seated in their
normal operating position. |
|
|
|
