Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - manually operated or automatic anti-dazzle interior mirror, with rain and light sensor -G397- and without front camera for driver assist systems -R242-

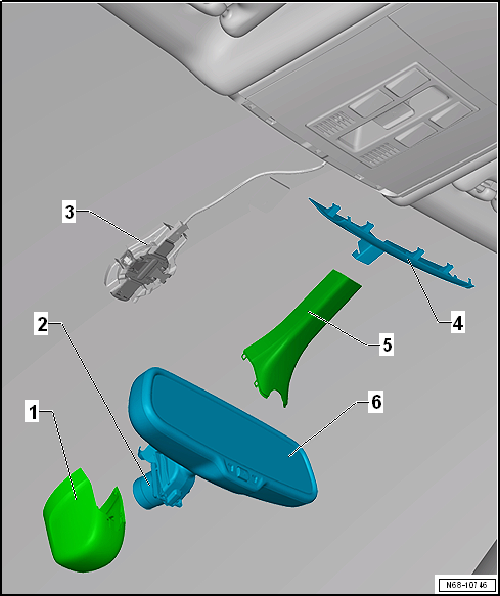

This assembly overview covers the Volkswagen Golf Mk7 mirror variant with rain/light sensor -G397-: front cover, Main Beam Assist control unit -J844- (not sold separately), and the retaining plate bonded to the windscreen.
| 1 - | Front cover |
- For mirror base
| 2 - | Main beam assist control unit -J844- |
- Equipment version
- Not sold separately
| 3 - | Retaining plate |
- For interior mirror
- Bonded to windscreen.
- Removing and installing → Chapter
| 4 - | Trim |
- Clipped into retaining frame for moulded headliner
- To remove, first remove rear cover
| 5 - | Rear cover |
- For mirror base
| 6 - | Interior mirror |
- Allocation → Electronic Parts Catalogue
- Removing and installing → Chapter
