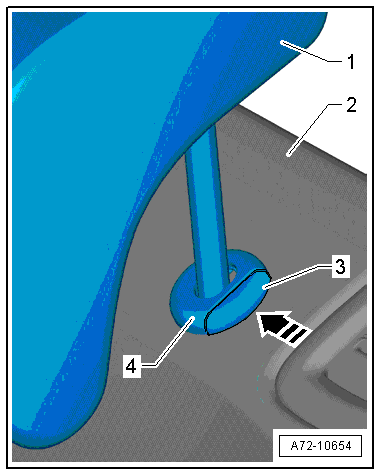

Press release button -3- for
height adjustment on head restraint guide
-4- in -direction of arrow-. |
| – |
At the same time pull head restraint
-1- out of rear seat backrest -2-
as far as stop. |
|
|
|
| – |

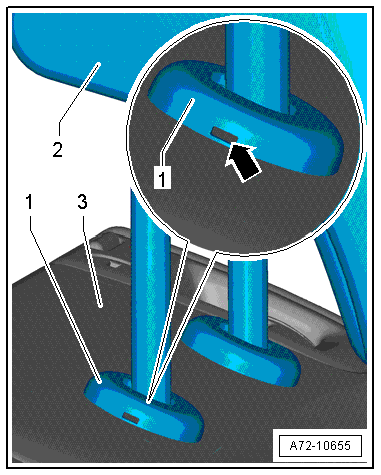

Insert a small flat-bladed screwdriver into opening
-arrow- of head restraint guide
-1- and press in locking spring as
far as stop. |
 Note
| The aperture in the head restraint guide
-arrow- may be on
»right« or
»left« as seen from direction of travel. |
| – |
At the same time pull head restraint
-2- out of rear seat backrest -3-
and remove it. |
| Installation is carried out in reverse order. |
|
|
|
Questions & answers
Removing and installing head restraint — Volkswagen Golf Mk7
How do I remove a Golf Mk7 rear head restraint?
Press the release button on the guide tube while pulling the headrest upward. It slides out of the backrest frame.
Special tools and workshop equipment
required
Torque wrench -V.A.G 1410-
...
Note
2 commercially available screwdrivers with a blade height of
0.4 mm and a blade width of 8 mm are required for removal.
...
