Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - coolant temperature sender

This assembly overview covers the Volkswagen Golf Mk7 coolant temperature senders: an always-renewed O-ring, the radiator outlet sender -G83-, a support ring, and the main coolant temperature sender -G62-.

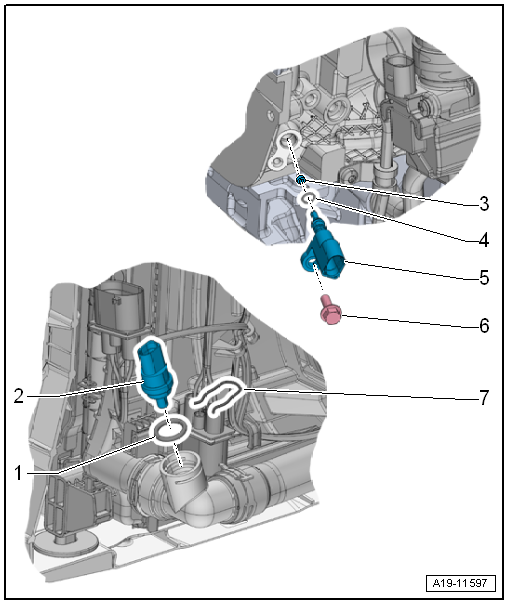

Assembly overview - coolant temperature sender

1 -  O-ring
Renew
2 -  Radiator outlet coolant temperature sender -G83-
Removing and installing → Chapter
3 -  Support ring
4 -  O-ring
Renew
5 -  Coolant temperature sender -G62-
Removing and installing → Chapter
6 -  Bolt
8 Nm
7 -  Retaining clip
Check for secure seating.

    Questions & answers

    Assembly overview - coolant temperature sender — Volkswagen Golf Mk7

    What does the Golf Mk7 1.4 TSI coolant temperature sender assembly show?
    Sender -G62- (for ECU), sender -G83- (at radiator outlet) and their positions on the engine and coolant pipes.
