Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing tie-down rings

Using torque wrench -V.A.G 1783-, this page covers removing the Volkswagen Golf Mk7 tie-down rings on the left side (right is similar) — fold down the bar and unclip it for access.

  Note
Removal and installation are described for the left vehicle side. Follow same instructions for the right side as appropriate.
Special tools and workshop equipment required



Torque wrench -V.A.G 1783
Torque wrench -V.A.G 1783
Removing

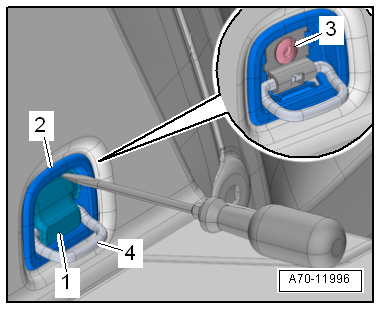

–  Fold down bar -4- and unclip cover -1- using a screwdriver.
–  Unscrew bolt -3- and remove tie-down ring -2-.
Installing
Installation is carried out in reverse order.
Specified torques
  → Chapter „Assembly overview - luggage compartment side trim“


Removing and installing tie-down rings
