Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - front side airbag

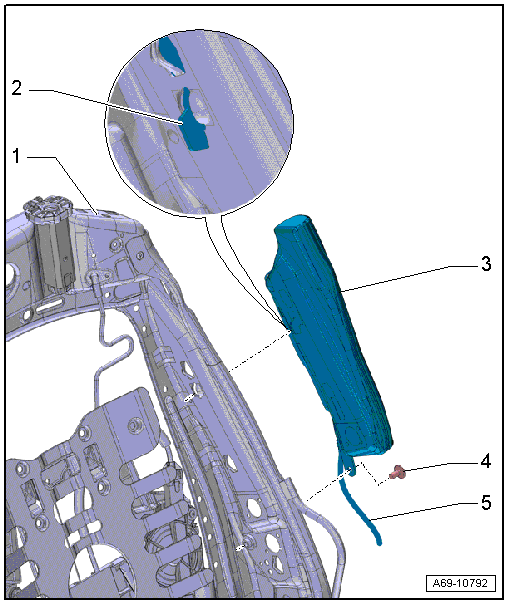

This assembly overview covers the Volkswagen Golf Mk7 front side airbag: the backrest frame, attachment hook, and the airbag itself with igniter -N199- (driver) or -N200- (passenger).
| 1 - | Backrest frame |
| 2 - | Hook |
- For attaching side airbag to backrest frame
| 3 - | Front side airbag |
- Driver side: with side airbag igniter on driver side -N199-
- Front passenger side: with side airbag igniter on front passenger side -N200-
 WARNING
|
| Removing and installing → Chapter |
| 4 - | Bolt |
-
Renew after removal -
8 Nm
| 5 - | Electrical wiring |
| From side airbag igniter on driver side -N199-/side airbag igniter on front passenger side -N200-. |
