Using torque wrench -V.A.G 1783-, this page gives the removal procedure for the Volkswagen Golf Mk7 plenum chamber bulkhead: remove the plenum chamber cover first, then unscrew the hexagon nuts to lift the bulkhead free.
| Special tools and workshop equipment
required |
|
|
|
| |
|

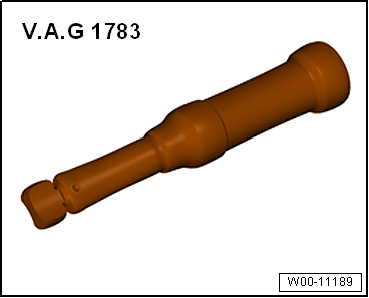

Torque wrench -V.A.G 1783- |
| – |
Removing plenum chamber cover
→ Chapter. |
| – |

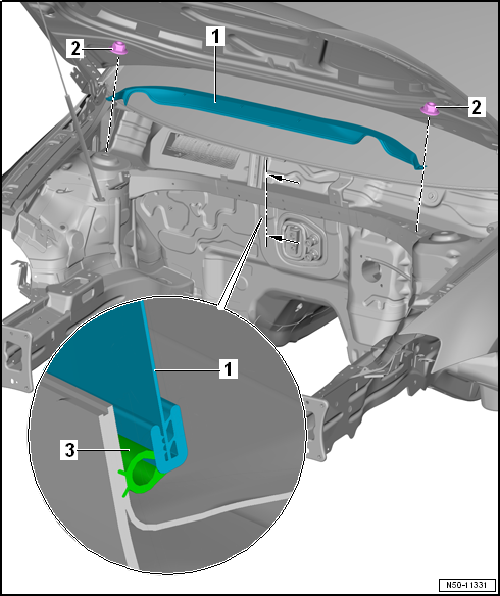

Unscrew hexagon nuts -2- and remove
plenum chamber bulkhead -1-. |
| Install in the reverse order of removal observing the following: |
Questions & answers
Removing and installing plenum chamber bulkhead — Volkswagen Golf Mk7
How do I remove the Golf Mk7 plenum chamber bulkhead?
Remove the plenum chamber covers first, then unscrew the hexagon nuts and lift the bulkhead panel out. Install in reverse, observing the 8 Nm torque.
Do I need to remove the Golf Mk7 wiper arms to access the plenum?
Yes. The wiper arms must be removed before the plenum covers can be taken off, as they overlap the cover edges.
1 -
Plenum chamber cover
q
Right side
q
Removing and installing
→ Chapter
2 -
Plenu ...
Removing
Note
The removal and installation procedures for the plenum chamber
covers may have to be modified slightly depending on model variants.
...
