Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - turbocharger
This assembly overview covers the Volkswagen Golf Mk7 turbocharger: an 8 Nm bolt, an always-renewed O-ring and gasket, the heat shield, a 25 Nm bolt, and an always-renewed 14 Nm nut.

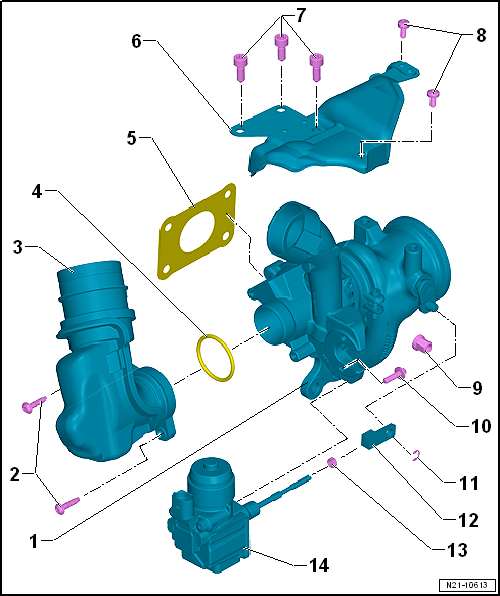

| 1 - | Turbocharger |
| Removing and installing → Chapter |
| 2 - | Bolt |
| 8 Nm |
| 3 - | Connection |
| 4 - | O-ring |
| Renew |
| 5 - | Gasket |
| Renew |
| 6 - | Heat shield |
| 7 - | Bolt |
| 25 Nm |
| 8 - | Bolt |
| 8 Nm |
| 9 - | Nut |
| Renew |
| 14 Nm |
| 10 - | Bolt |
| Renew |
| 9 Nm |
| 11 - | Securing clip |
| Renew |
| 12 - | Operating lever |
| 13 - | Lock nut |
| 6 Nm |
| Secure with sealing paint |
| 14 - | Charge air pressure controller -V465- |
Note| Note the following when installing! |
| There may be different types of charge air pressure controllers installed. |
| Removing and installing → Chapter |

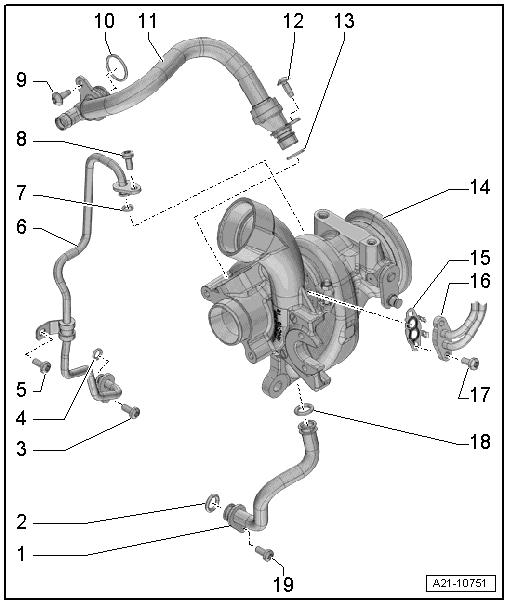

| 1 - | Oil return line |
| 2 - | O-ring |
| Renew |
| 3 - | Bolt |
| 9 Nm |
| 4 - | O-ring |
| Renew |
| 5 - | Bolt |
| 9 Nm |
| 6 - | Oil supply line |
| 7 - | O-ring |
| Renew |
| 8 - | Bolt |
| 9 Nm |
| 9 - | Bolt |
| Renew |
| 5 Nm |
| 10 - | O-ring |
| If damaged, renew crankcase breather hose → Item |
| 11 - | Hose |
| For crankcase breather |
| 12 - | Bolt |
| Renew |
| 5 Nm |
| 13 - | O-ring |
| If damaged, renew crankcase breather hose → Item |
| 14 - | Turbocharger |
| Removing and installing → Chapter |
| 15 - | Gasket |
| Renew |
| 16 - | Coolant lines |
| Supply and return lines |
| 17 - | Bolt |
| 8 Nm |
| 18 - | O-ring |
| Renew |
| 19 - | Bolt |
| 9 Nm |
